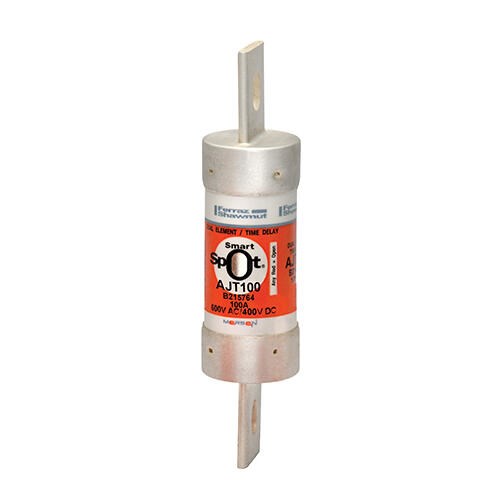

Mersen AJT100 Power Fuse 100A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA

Product Code: AJT100

  • Rated for 100 A, 600/400 VAC/VDC
  • High breaking capacity of 200 kA
  • Mounts via clip or bolt
  • Compact size: 27 mm Dia x 117.6 mm L
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
AJT
Application
Protection at all levels of power distribution

Electrical

Breaking Capacity
300kA
Rated Current (In)
100A
Rated Voltage (Ur)
600V AC / 400V DC
Speed Class
Time Delay/Class J

Mechanical

Body Style
Bolted Tag
Fixing Centres
92mm
Material
Body: GMG, Terminal:Tin-Plated Copper

Dimensions & Physical Data

Length
117.6mm
Weight
0.10kg (Approx.)
Width
Ø 27mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2-1
