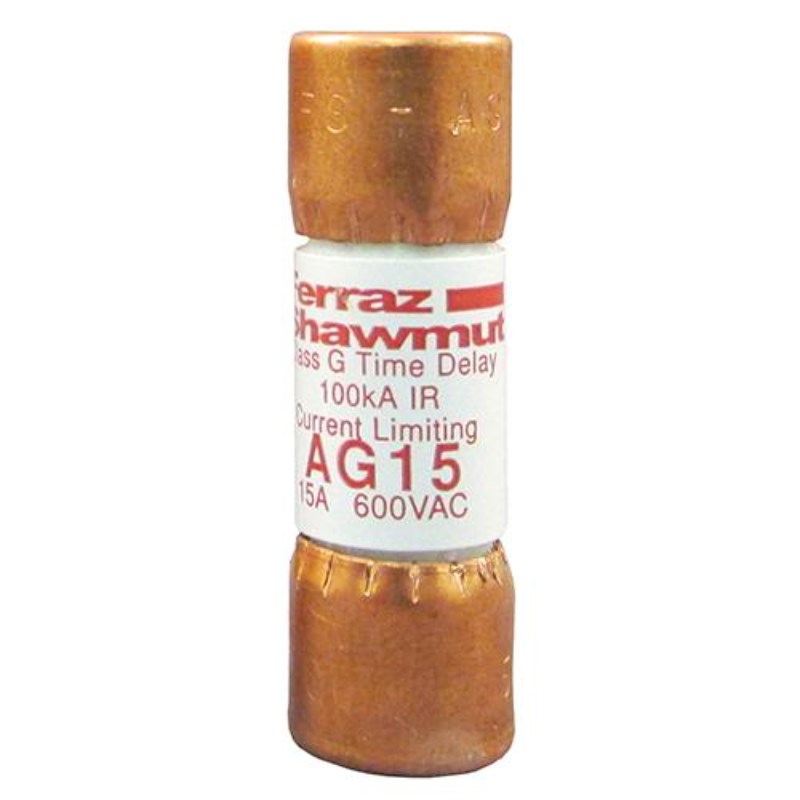

Mersen AG15 Power Fuse 15A 600VAC Class G Ferrule 10mm x 33mm 100kA Interrupt Time Delay

Product Code: AG15

  • Rated for 15 A, 600 VAC
  • Compact 10 mm x 33 mm size
  • High interrupt rating of 100 kA
  • Class G ferrule-style fuse
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
AG

Electrical

Breaking Capacity
100kA
Rated Current (In)
15A
Rated Voltage (Ur)
600V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Material
Body: Fiberglass, End cap: tin plated copper
Size Code
AG

Dimensions & Physical Data

Length
33.3mm
Weight
0.0073kg (Approx.)
Width
Ø 10.3mm

Safety, Standards & Compliance

Standards and Approvals
CSA Certified-C22.2 No. 248.5
