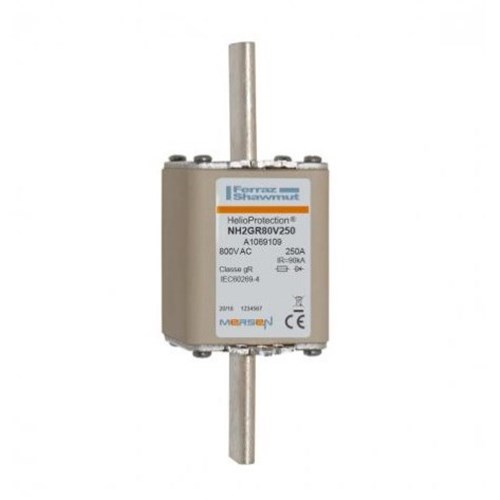

Mersen A1069109 Fuse Link 250 A 800VAC 5.91 in L X 2.01 in W x 2.83 in H Fuse Plain Blade Terminal

Product Code: A1069109

  • Rated for 250 A, 800 VAC
  • Clip mounting for easy installation
  • Plain blade terminals
  • Power dissipation of 31 W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic Fuse Link
Brand
Mersen
Series
HelioProtection NH fuse-links 800 V AC gR
Application
Photovoltaic systems and DC / 800 VAC solar inverter protection; full-range protection of cables and equipment.

Electrical

Utilization Category
gR
Breaking Capacity
90kA AC
Rated Current (In)
250A
Rated Frequency
50Hz to 60Hz
Rated Voltage (Ur)
800V AC
Speed Class
gR / full range

Mechanical

Body Style
Square body
Indicators
without indicator
Material
Fuse element and NH blade contacts in ceramic body
Mounting
NH fuse holder / fuse-switch-disconnector
Size Code
NH2
Connection/Termination
Plain blades for clip
Fuse Holder
NH fuse holder / 800VAC fuse-switch-disconnector

Dimensions & Physical Data

Weight
0.7kg (Approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; UL 248-13; UL 248-1
