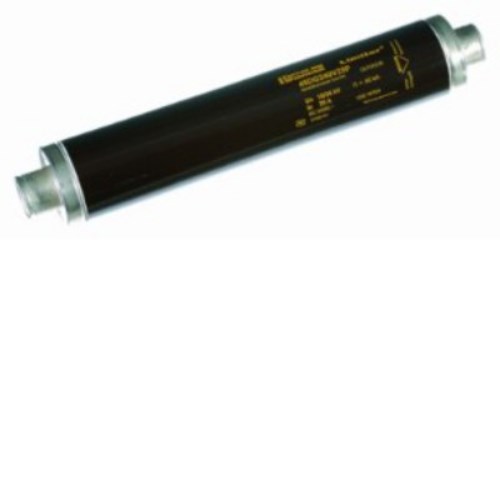

Mersen 45DB240V31.5P HV Fuse-Link 31.5A 24 kV 56mm Dia x 442mm L Cylindrical 63kA Ceramic Medium Striker Striker 80N

Product Code: 45DB240V31.5P

  • Rated for 24 kV and 31.5 A current
  • High breaking capacity of 63 kA
  • Durable ceramic body with silver-plated copper contacts
  • Striker indicator with 80N force
  • Complies with IEC, VDE, DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back-up fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63 kA
Rated Current
31.5 A
Rated Voltage
10 / 24 kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Weight
2.3 kg (Approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625

Documents

IPD Product Catalogue V17
