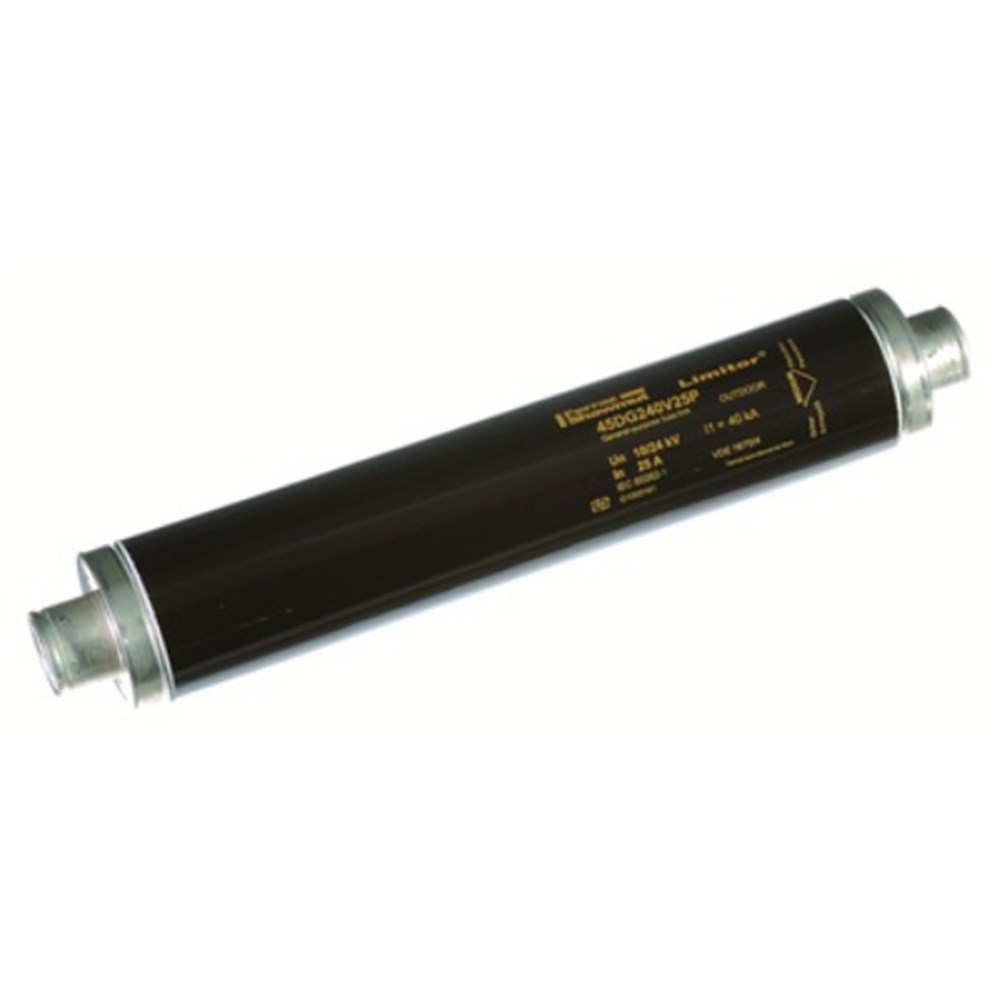

Mersen 45DB240V25P HV Fuse-Link 25A 24 kV 56mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V25P

  • 25 A, 24 kV HV fuse link
  • High breaking capacity of 63 kA
  • Ceramic body with silver-plated copper terminals
  • Striker indicator for easy status check
  • Clip mounting for secure installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back - Up Fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63kA
Rated Current (In)
25A
Rated Voltage (Ur)
10 / 24kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
442mm
Weight
2.3kg (Approx.)
Width
Ø 56mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
