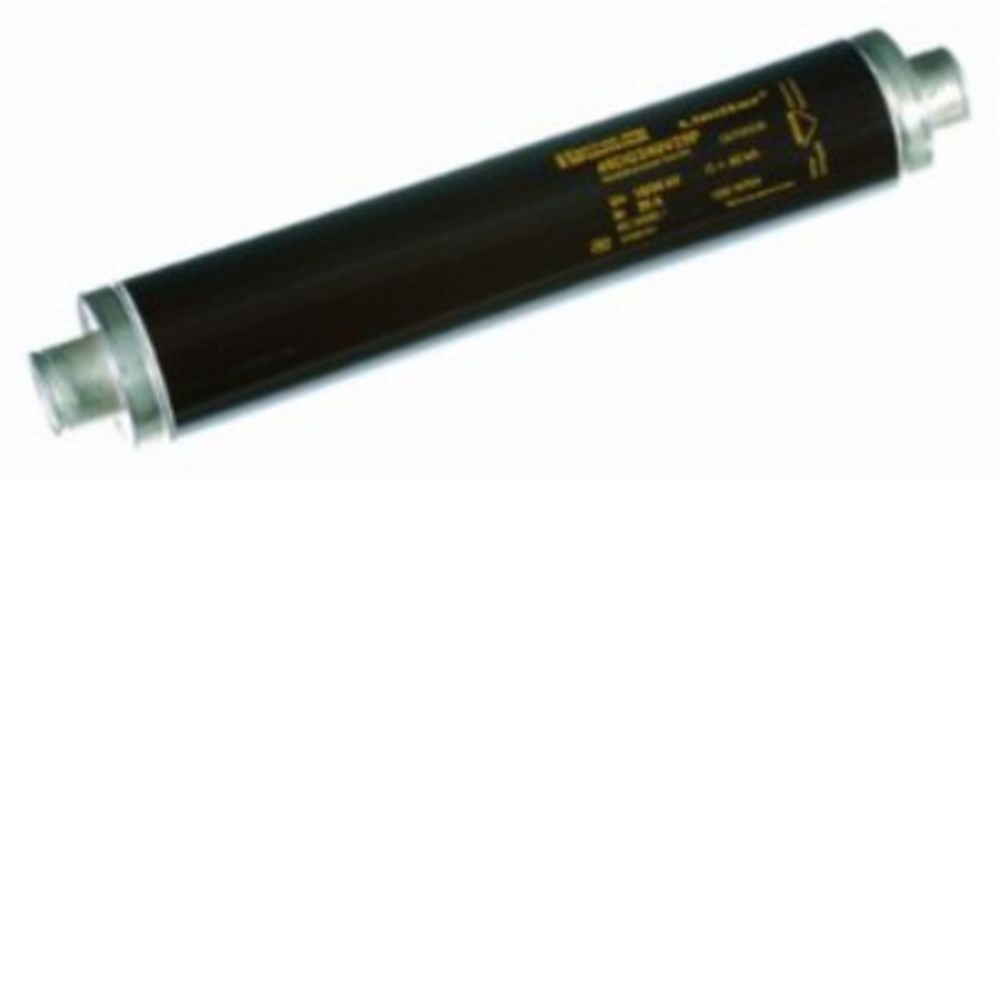

Mersen 45DB240V16P HV Fuse-Link 16A 24 kV 56mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V16P

  • Suitable for 24 kV applications
  • Rated current of 16 A
  • High breaking capacity of 63 kA
  • Durable ceramic body material
  • Striker indicator with 80N force
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Voltage Fuse
Brand
Mersen
Series
Limitor®-P
Application
Transformer protection

Electrical

Utilization Category
Back-up fuse (IEC 60282-1)
Breaking Capacity
63kA
Rated Current (In)
16A
Rated Voltage (Ur)
24000V AC

Mechanical

Body Style
DIN cylindrical HV fuse
Contact Material
Silver-plated copper
Indicators
Striker (80N)
Material
Ceramic body
Mounting
Clip/holder
Top Cap Diameter
56mm

Dimensions & Physical Data

Weight
~2.5kg
Size
Ø56 mm × 442 mm

Documents

IPD Product Catalogue V17
