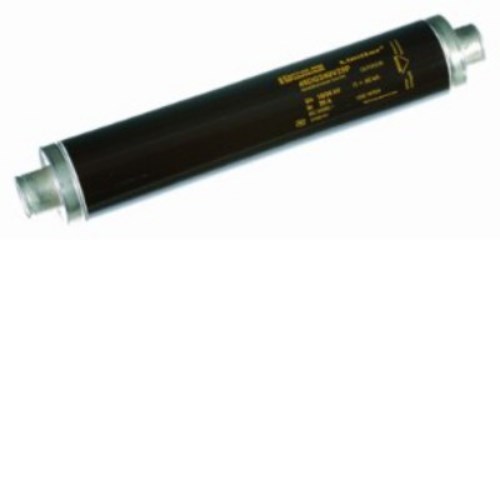

Mersen 45DB240V10P HV Fuse-Link 10A 24 kV 56mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V10P

  • Rated for 24 kV, 10 A applications
  • High breaking capacity of 63 kA
  • Ceramic body with silver-plated copper terminals
  • Striker indicator with 80N force
  • Compact size: 56 mm Dia x 442 mm L
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back-up fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63 kA
Rated Current
10 A
Rated Voltage
10 / 24 kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
442 mm
Weight
2.3 kg (Approx.)
Width
Ø 56 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
