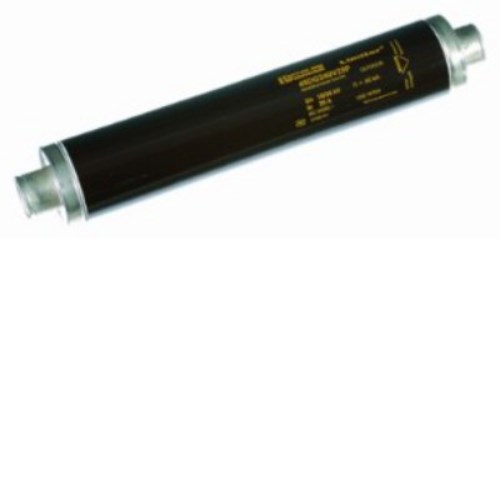

Mersen 45DB240V100P HV Fuse-Link 100A 24 kV 78mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V100P

  • Rated for 100 A, 24 kV applications
  • High breaking capacity of 63 kA
  • Compact size: 78 mm Dia x 442 mm L
  • Durable ceramic body with silver-plated copper terminals
  • Equipped with an 80N striker indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back-up fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63 kA
Rated Current
100 A
Rated Voltage
10 / 24 kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
442 mm
Weight
4.2 kg (Approx.)
Width
Ø 78 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
