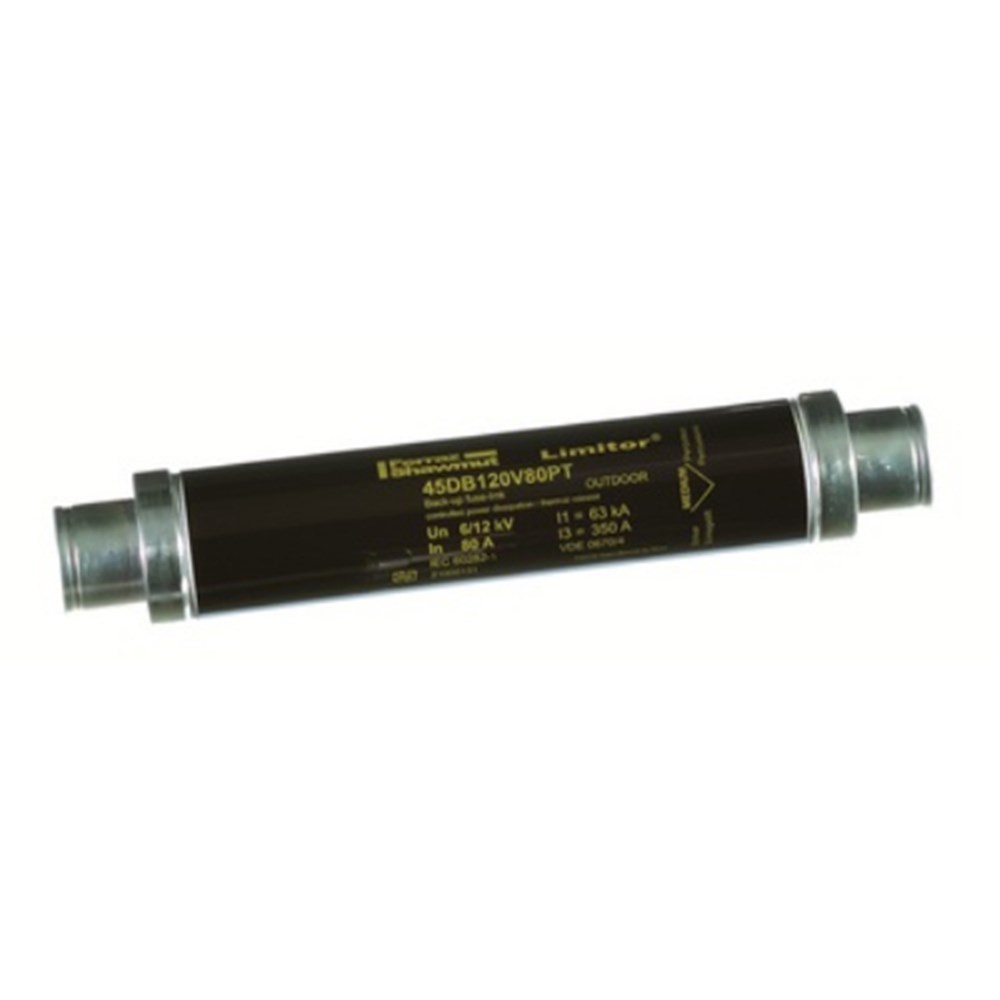

Mersen 45DB120V80P HV Fuse-Link 80A 12 kV 65mm Dia x 292mm L 63kA Medium Striker Striker 80N

Product Code: 45DB120V80P

  • Rated for 80A, 12kV high voltage applications
  • High breaking capacity of 63kA
  • Durable ceramic body and insulation
  • Silver plated copper terminals for optimal conductivity
  • Equipped with a striker indicator (80N)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back - Up Fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63kA
Rated Current (In)
80A
Rated Voltage (Ur)
6 / 12kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
292mm
Weight
2.1kg (Approx.)
Width
Ø 65mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
