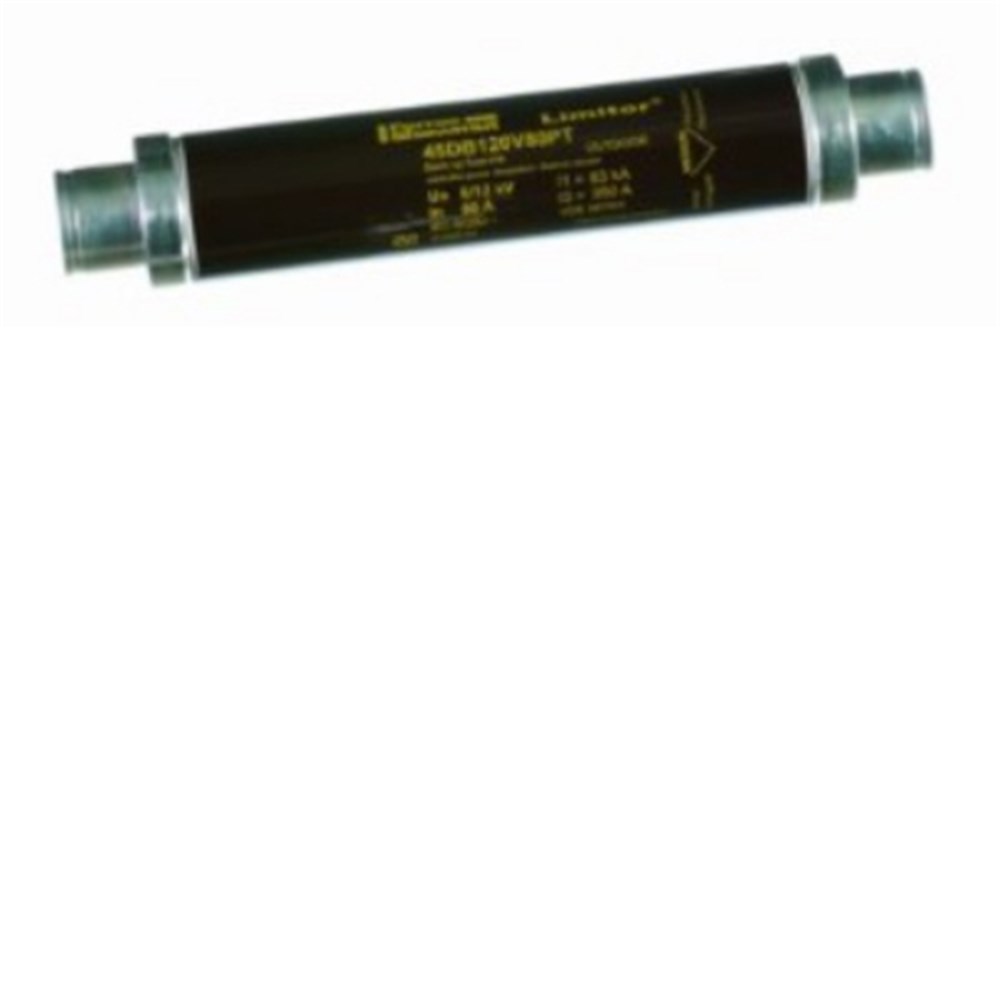

Mersen 45DB120V6.3P HV Fuse-Link 6.3A 12 kV 56mm Dia x 292mm L Cylindrical 63kA Ceramic Medium Striker Striker 80N

Product Code: 45DB120V6.3P

  • Rated for 12 kV, 6.3 A applications
  • High breaking capacity of 63 kA
  • Ceramic body with silver-plated copper contacts
  • Striker indicator with 80N force
  • Compact size: 56 mm diameter x 292 mm length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back - Up Fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63kA
Rated Current (In)
6.3A
Rated Voltage (Ur)
6 / 12kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
292mm
Weight
1.7kg (Approx.)
Width
Ø 56mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
