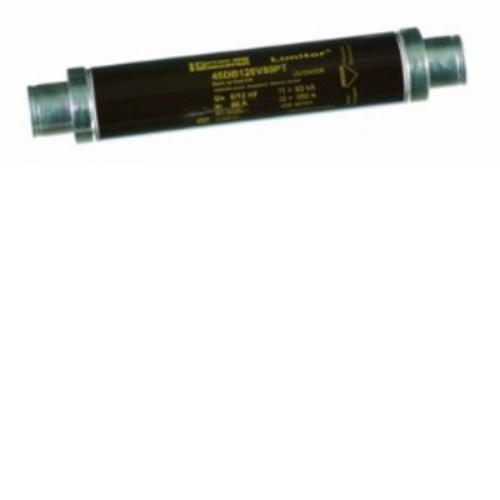

Mersen 45DB120V25P Fuse Link 25A 12 kV 56mm Dia x 292mm L 63kA Medium Striker Striker 80N

Product Code: 45DB120V25P

  • Rated for 25A, 12kV applications
  • High breaking capacity of 63kA
  • Durable ceramic body and insulation
  • Striker indicator with 80N force
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN HV Back-up fuse
Brand
Mersen
Application
HV Transformer protection

Electrical

Breaking Capacity
63 kA
Rated Current
25 A
Rated Voltage
6 / 12 kV

Mechanical

Body Style
Cylindrical
Indicators
Medium striker 80 N / 30 mm
Material
Fuse element: pure silver, Caps: Copper coated with silver, Body: pure silver
Connection/Termination
DIN clip-in (end-cap type)

Dimensions & Physical Data

Length
292 mm
Weight
1.7 kg (Approx.)
Width
Ø 56 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60282-1, VDE 0670 part 4, DIN 43625
