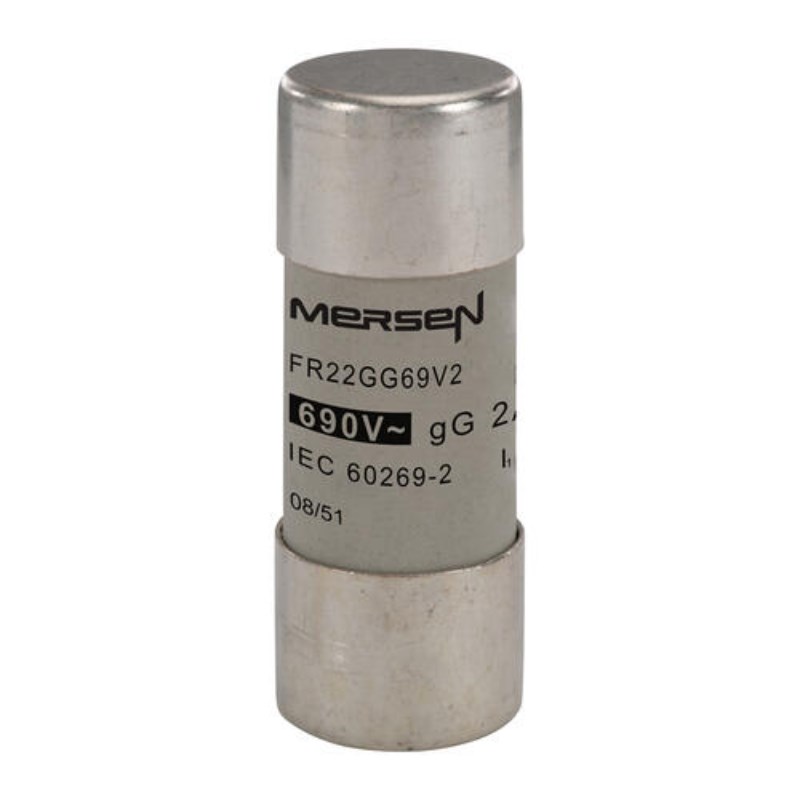

Mersen 22G02 Fuse Link 2A 690VAC 22.2mm Dia x 58mm L Cylindrical 120kA Ceramic gG

Product Code: 22G02

  • Rated for 2 A and 690 VAC
  • High breaking capacity of 120 kA
  • Compact size: 22.2 mm Dia x 58 mm L
  • Durable ceramic body with silver-plated copper contacts
  • Complies with IEC 60269 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ferrule Fuse - Links
Brand
Mersen
Application
Industrial application and electrical distribution circuits.

Electrical

Utilization Category
gG
Breaking Capacity
120 kA AC / 100 kA DC
Rated Current (In)
0.083333
Rated Voltage (Ur)
690 V AC / 250 V DC

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
22 x 58
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
58 mm
Weight
0.054 kg (Approx.)
Width
Ø 22.2 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -2
