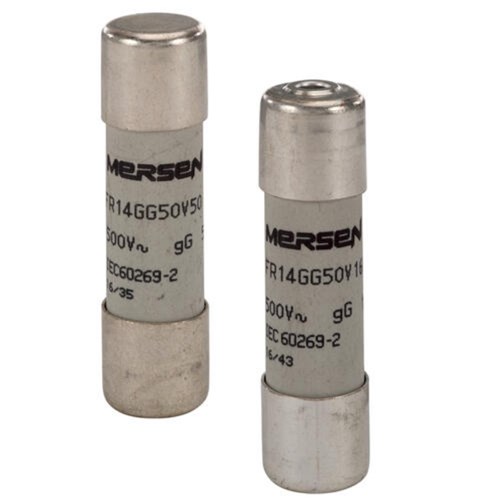

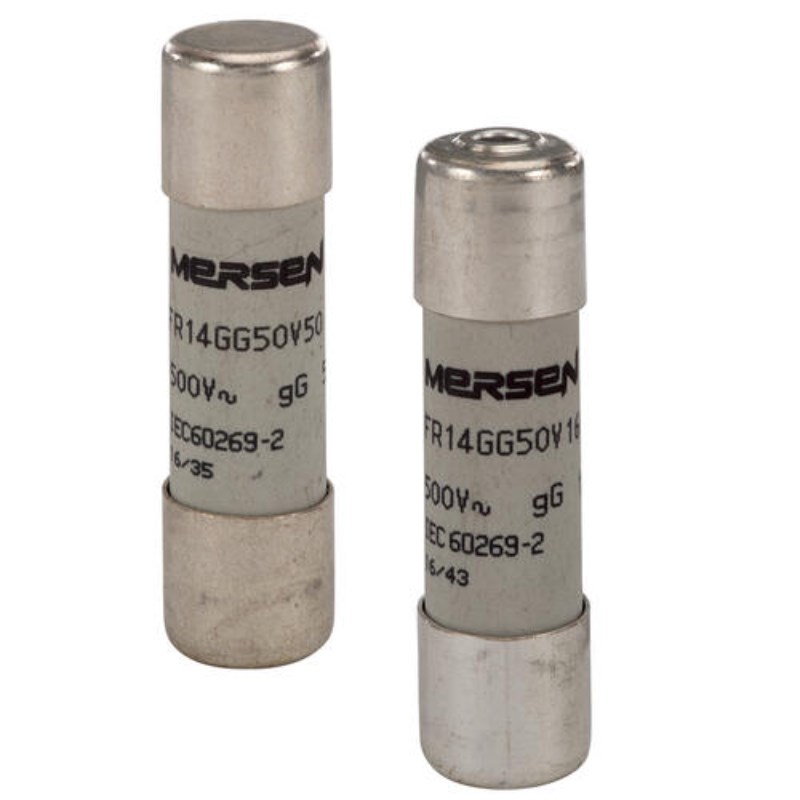

Mersen 14G12 Fuse Link 12A 690VAC Cylindrical Ferrule 14mm Dia x 51mm L 120kA Ceramic gG

Product Code: 14G12

  • Rated for 12 A current
  • Supports up to 690 VAC
  • High breaking capacity of 120 kA
  • Durable ceramic construction
  • Complies with IEC269-1, BS88-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ferrule Fuse - Links
Brand
Mersen
Application
Industrial application and electrical distribution circuits.

Electrical

Utilization Category
gG
Breaking Capacity
120 kA AC / 100 kA DC
Rated Current (In)
0
Rated Voltage (Ur)
690 V AC / 250 V DC

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
14 x 51
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
51 mm
Weight
0.021 kg (Approx.)
Width
Ø 14.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -2
