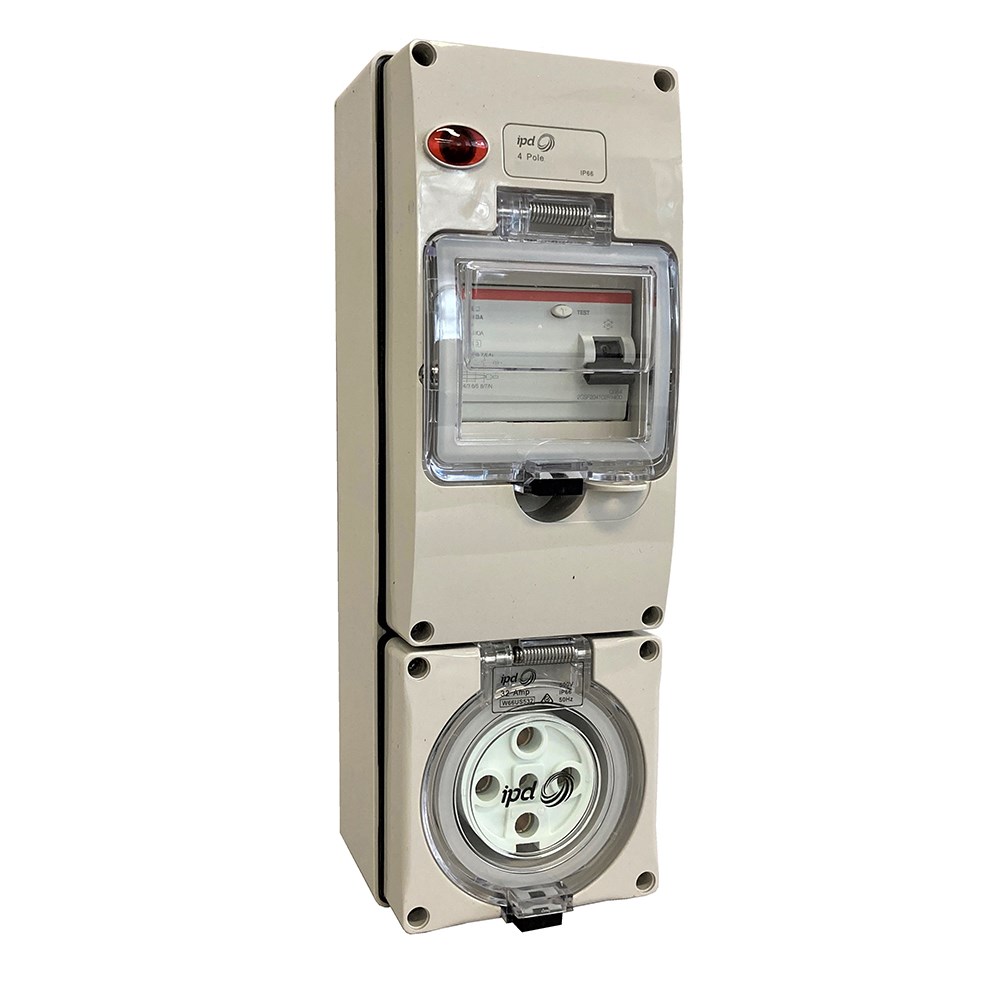

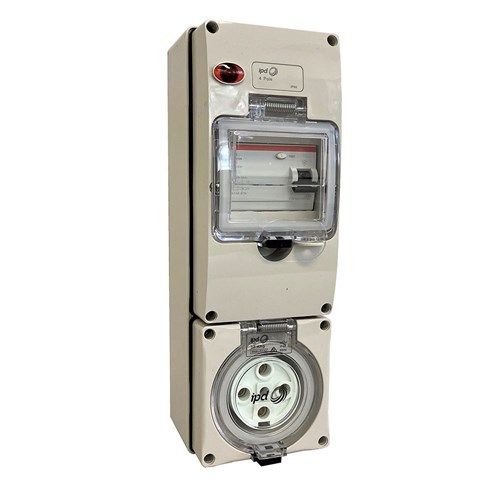

IPD W66US550RCA Unswitched Socket 5 Round-Pin 3-Ph 50A 415VAC/DC TypeA IP66 Polycarbonate

Product Code: W66US550RCA

  • 50A, 415V outlet with IP66 protection
  • Durable polycarbonate construction
  • Supports cable up to 16 sq-mm
  • Includes M32 and M25 gland entries
  • Comes with a back box
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Base
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
50A
Rated Voltage (Ur)
415V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Grey
Gland Entries
2 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
5 Pin
Pin Type
Round
Max. Cable Size
16 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123
