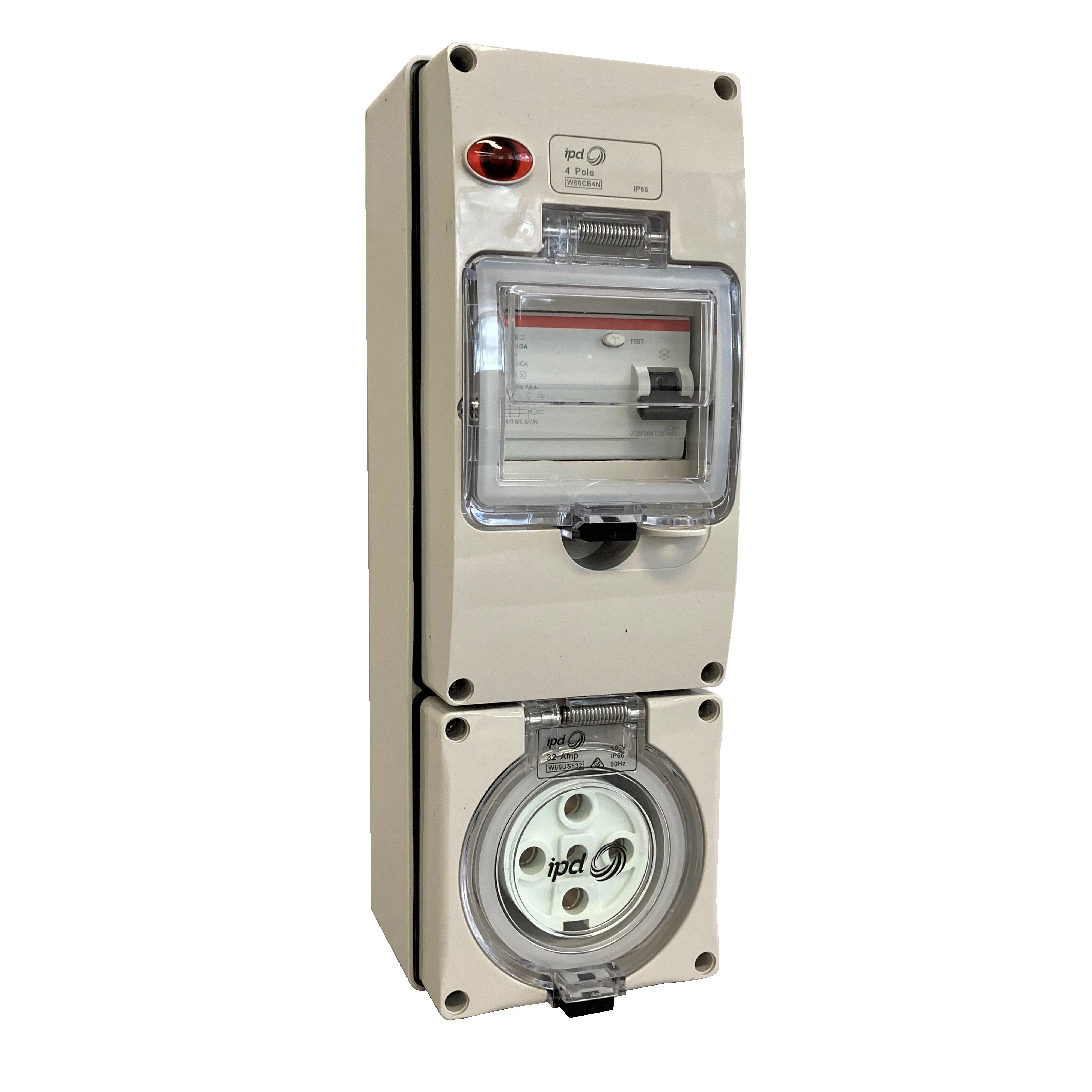

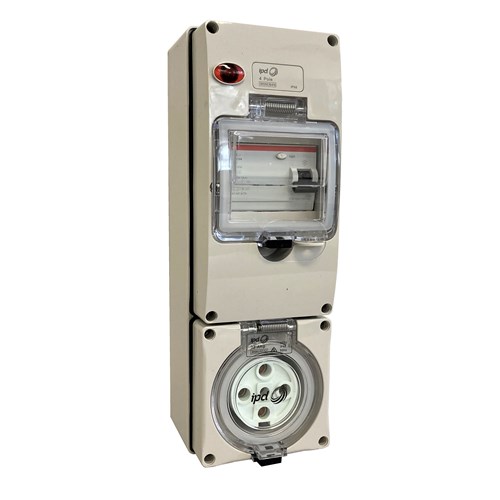

IPD W66US532RCA Unswitched Socket 5 Round-Pin 3-Ph 32A 415VAC/DC TypeA IP66 Polycarbonate

Product Code: W66US532RCA

  • 32A, 415V AC/DC rated outlet
  • IP66 weatherproof protection
  • Durable polycarbonate construction
  • Includes back box for easy installation
  • Supports Type A residual current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unswitched Socket
Brand
IPD

Electrical

No. of Phases
3
Rated Current (In)
32A
Rated Voltage (Ur)
415 VAC/VDC
Residual Current Type
Type A

Mechanical

Back Box Included
Yes
Cable Cross Section
16 sq-mm
Colour
Light Grey
Cover Type
Silicone Gasket
Gland Entries
(2) M32, (2) M25
Material
Polycarbonate
No. of Pins
5
Pin Type
Round

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IP66

Documents

IPD Product Catalogue V17
