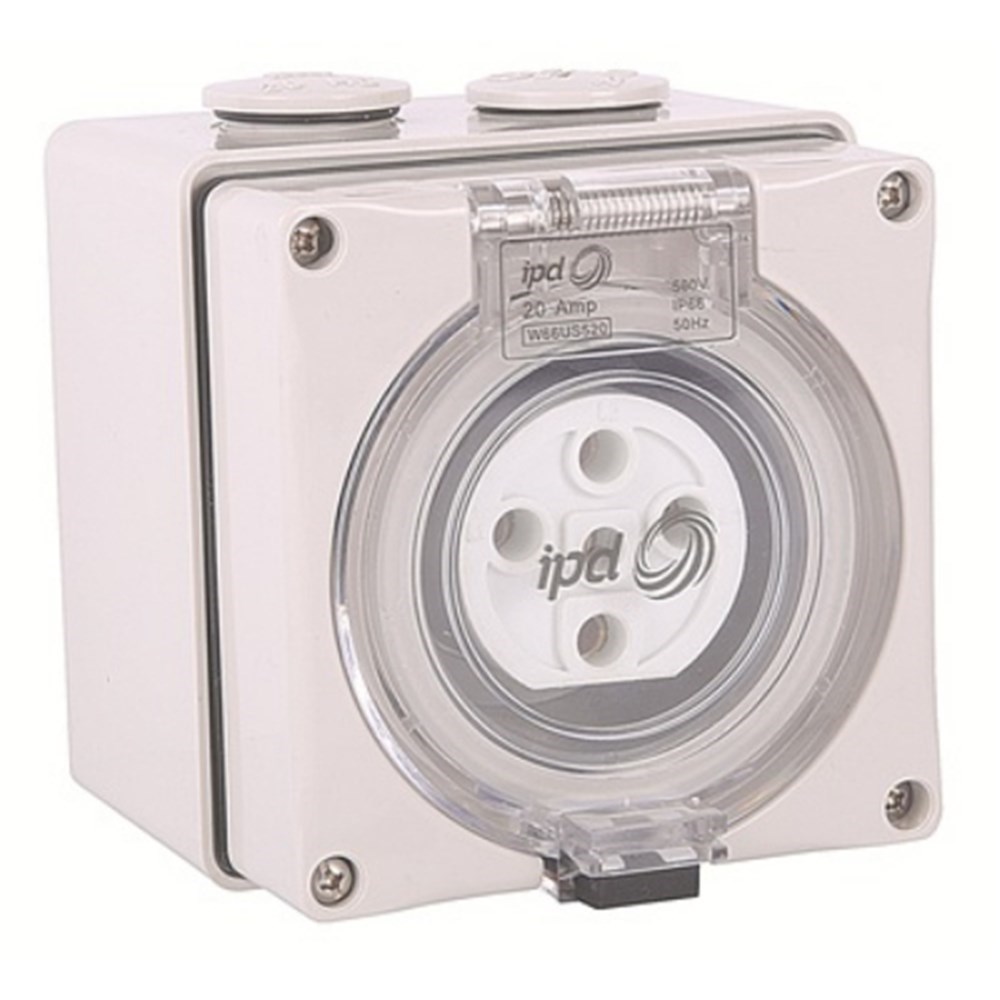

IPD W66US520 Unswitched Socket 5 Round-Pin 3-Ph 20A 500VAC/DC IP66 Polycarbonate

Product Code: W66US520

  • 20A socket with round pins
  • IP66 rated for robust protection
  • Complies with AS3123 standards
  • Durable polycarbonate construction
  • Includes back box and gland entries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unwitched Socket
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
20A
Rated Voltage (Ur)
500V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
5 Pin
Pin Type
Round
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123
