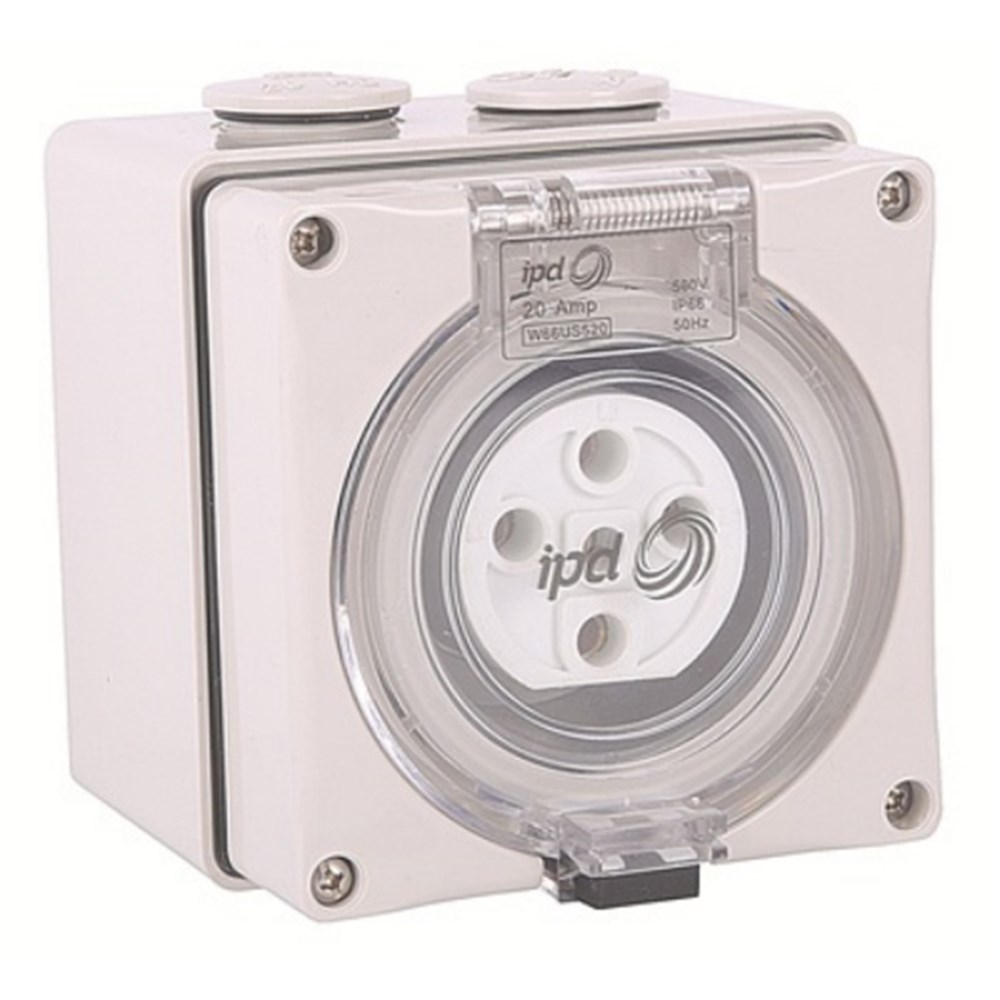

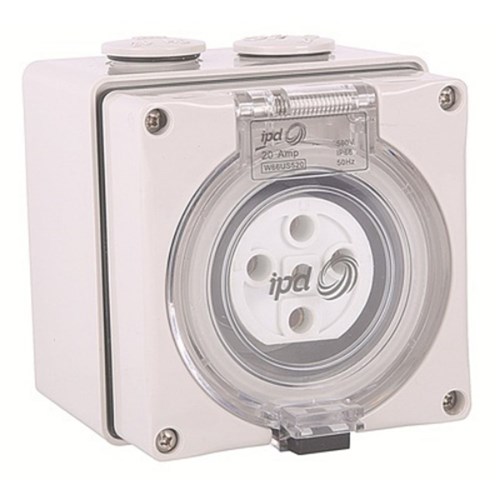

IPD W66US420 Unswitched Socket 4 Round-Pin 3-Ph 20A 500VAC/DC IP66 Polycarbonate

Product Code: W66US420

  • 20A socket for high power applications
  • Complies with AS3123 standards
  • IP66 rated for dust and water resistance
  • Durable polycarbonate construction
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unwitched Socket
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
20A
Rated Voltage (Ur)
500V
No. of Switching Poles
3
With Neutral Conductor
Yes

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
