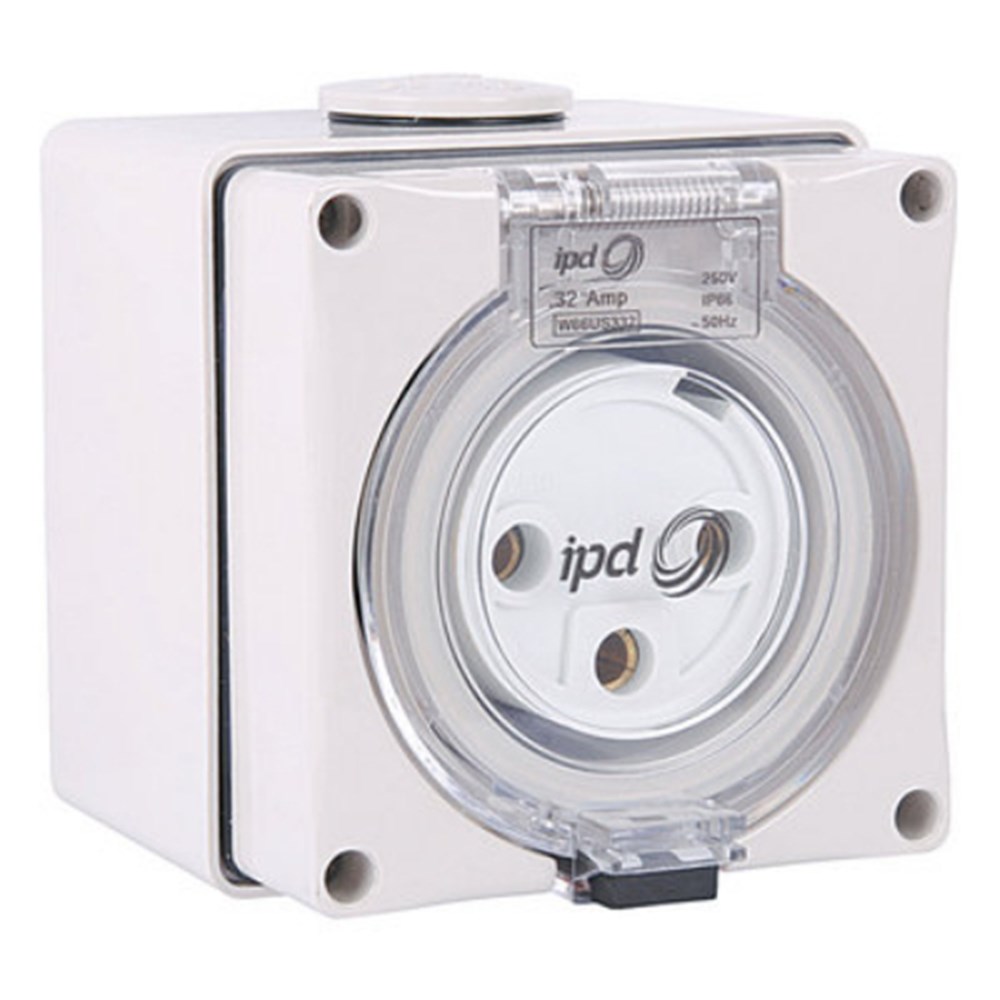

IPD W66US332 Unswitched Socket 3 Round-Pin 1-Ph 32A 250VAC/DC IP66 Polycarbonate

Product Code: W66US332

  • Rated for 32A, 250V AC/DC applications
  • Compact size: 101x101x91 mm
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unwitched Socket
Brand
IPD
Series
W66

Electrical

No. of Phases
1 phase
Rated Current (In)
32A
Rated Voltage (Ur)
250V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Round
Max. Cable Size
16 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
