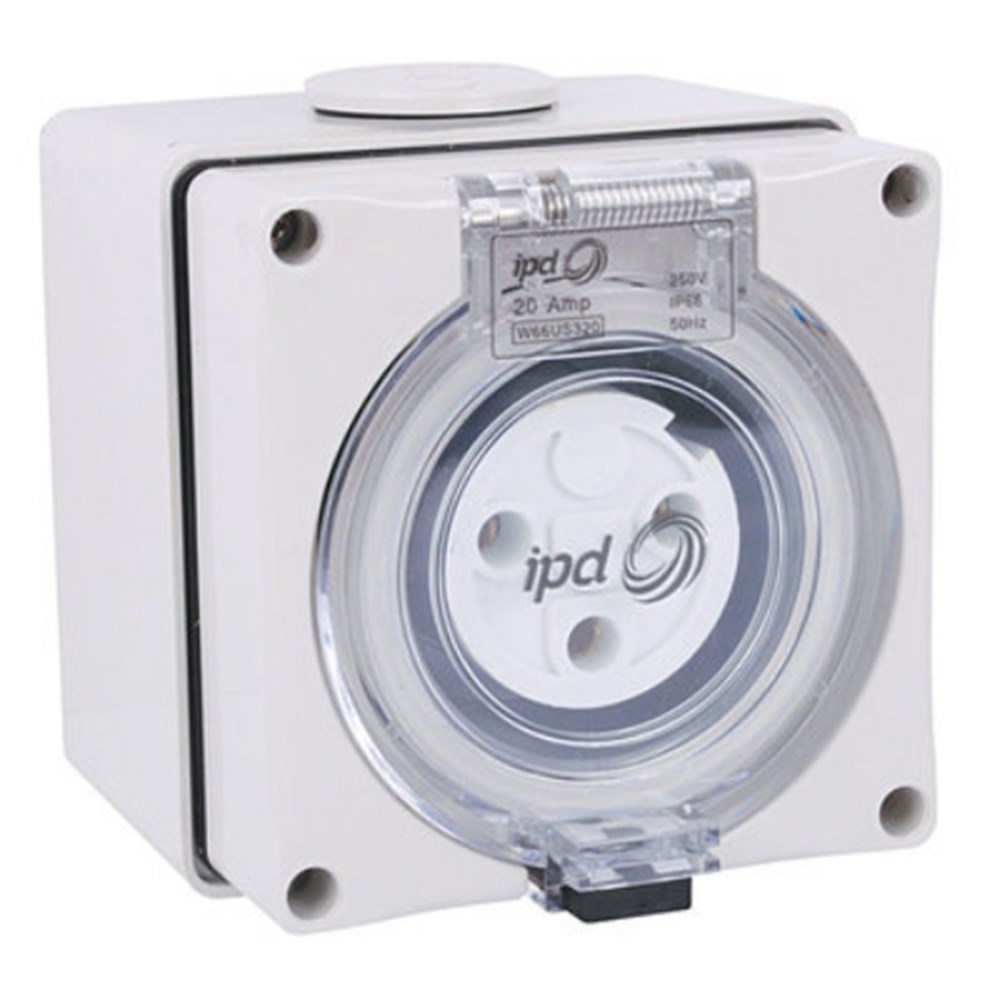

IPD W66US320 Unswitched Socket 3 Round-Pin 1-Ph 20A 250VAC/DC IP66 Polycarbonate

Product Code: W66US320

  • 20 A socket with IP66 protection
  • Supports 250 VAC/VDC
  • Durable polycarbonate material
  • Includes back box for easy install
  • Features (1) M32, (2) M25 gland entries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unwitched Socket
Brand
IPD
Series
W66

Electrical

No. of Phases
1 phase
Rated Current (In)
20A
Rated Voltage (Ur)
250V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Round
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
