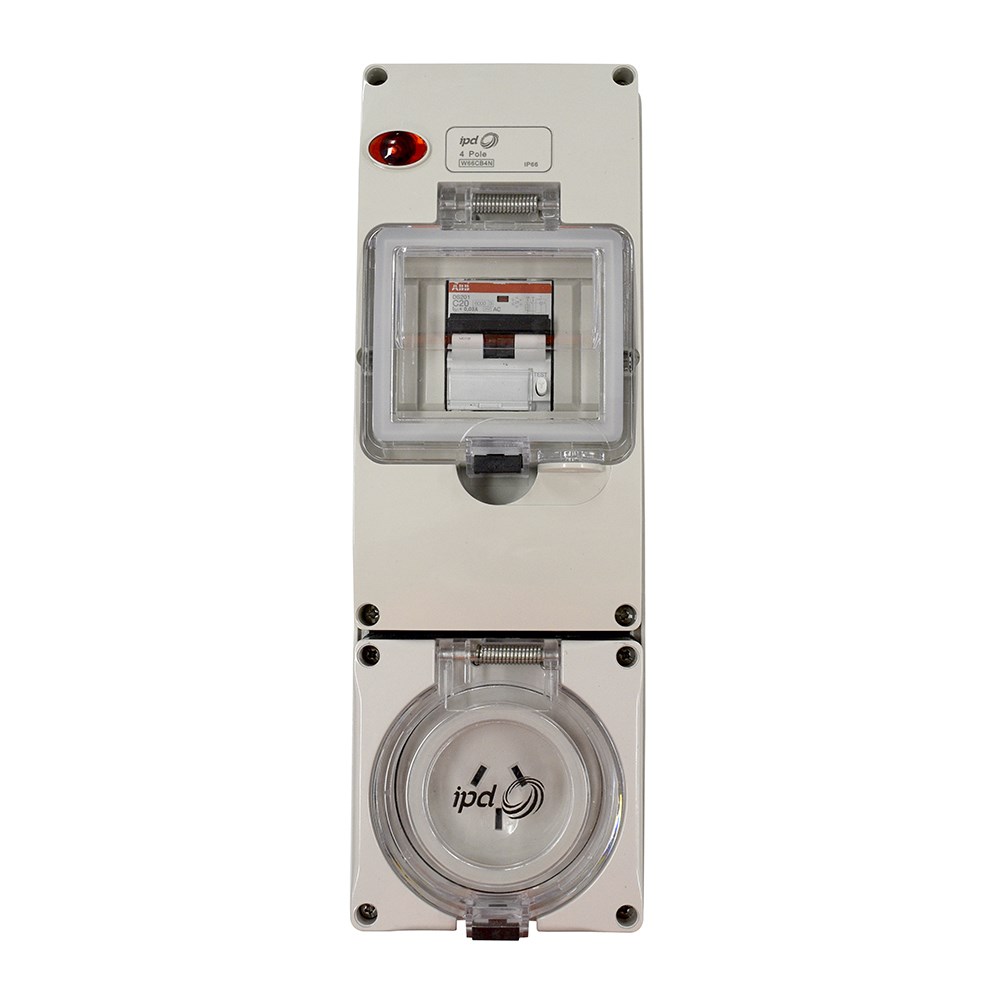

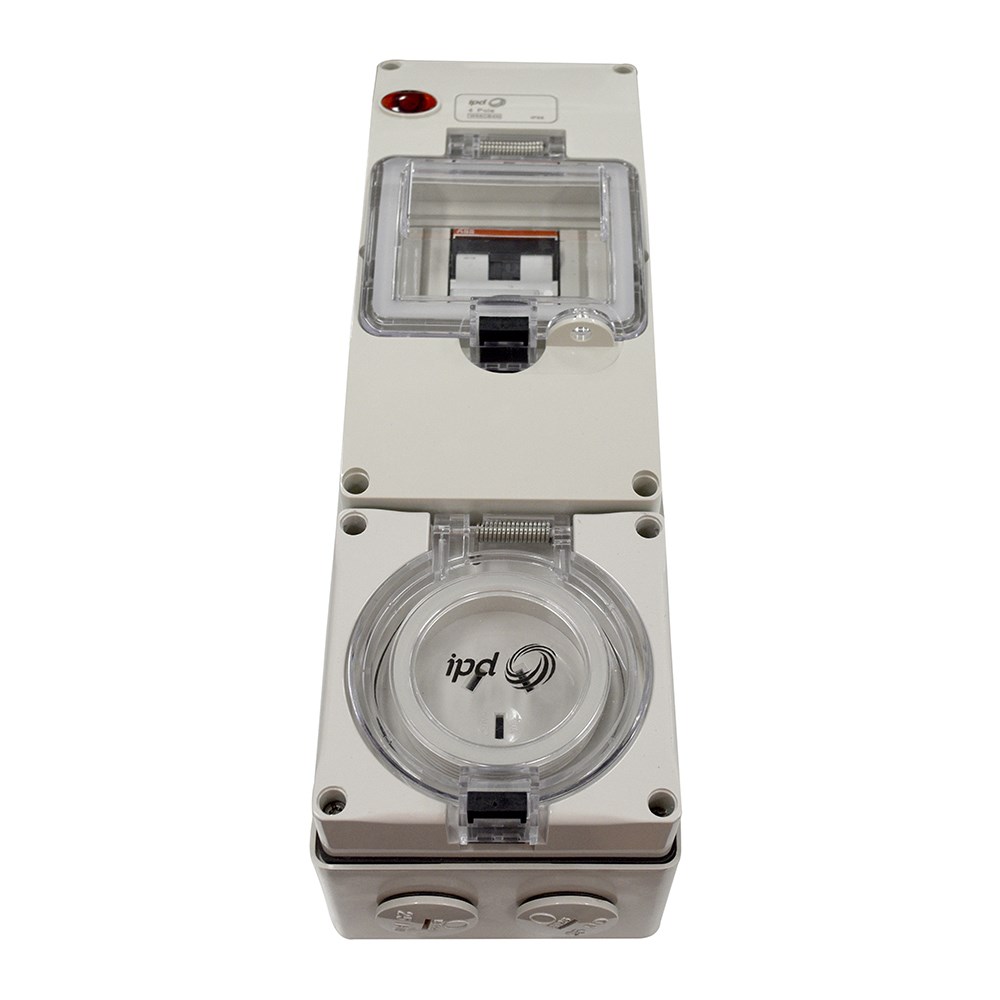

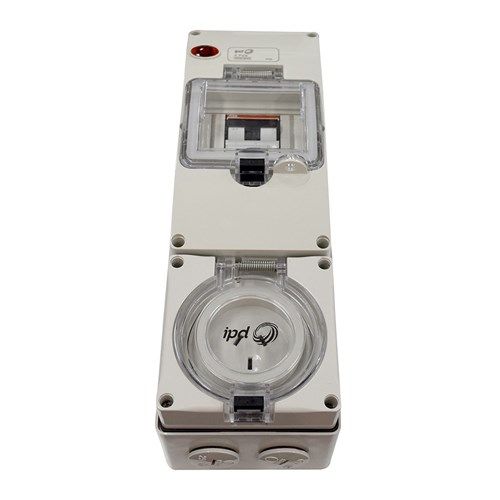

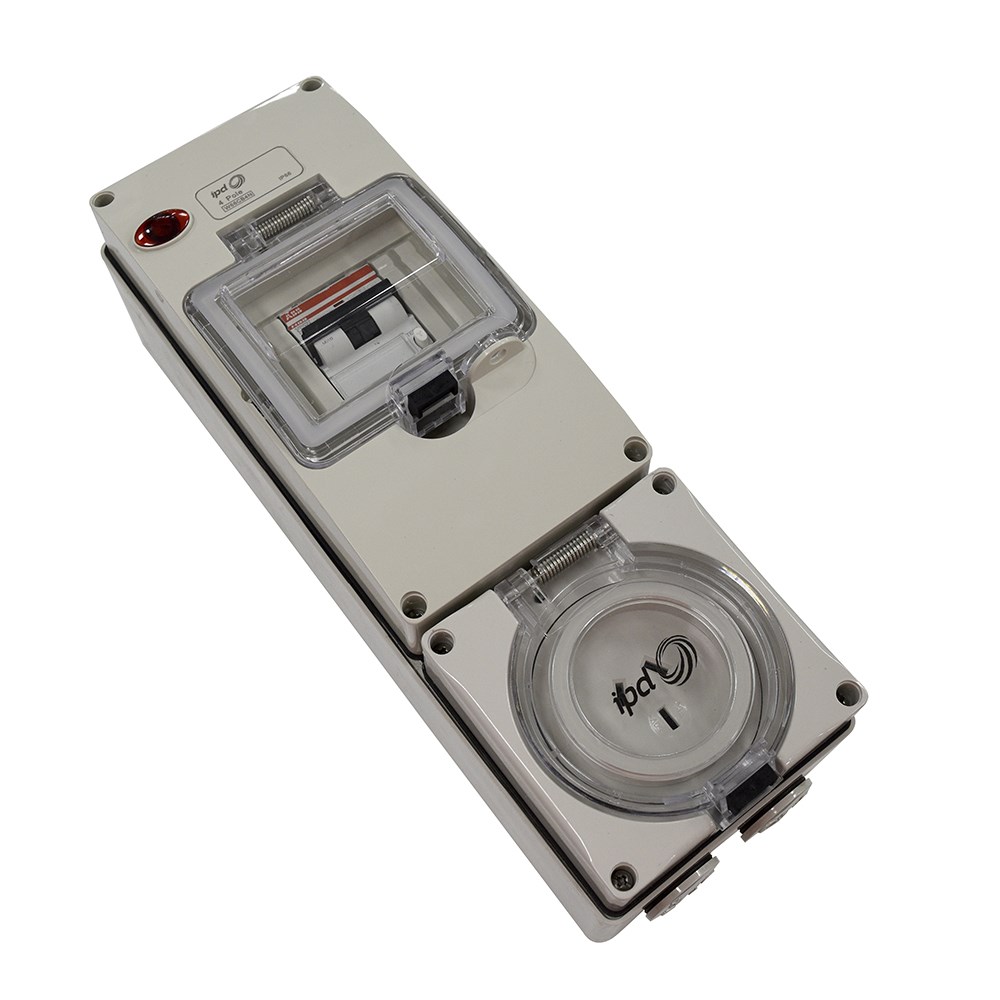

IPD W66US310RCA Unswitched Socket 3 Flat-Pin 1-Ph 10A 250VAC/DC TypeA IP66 Polycarbonate

Product Code: W66US310RCA

  • IP66 rated for robust protection
  • Handles up to 10 A, 250 VAC/VDC
  • Durable polycarbonate construction
  • Accommodates 6 sq-mm cables
  • Includes (1) M32 and (2) M25 gland entries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
RCD Protected Outlet
Brand
IPD
Series
W66

Electrical

No. of Phases
1 phase
Rated Current (In)
0.416667
Rated Voltage (Ur)
240 V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Flat
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
