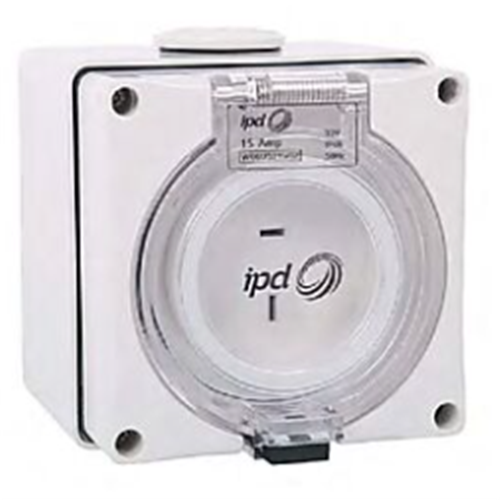

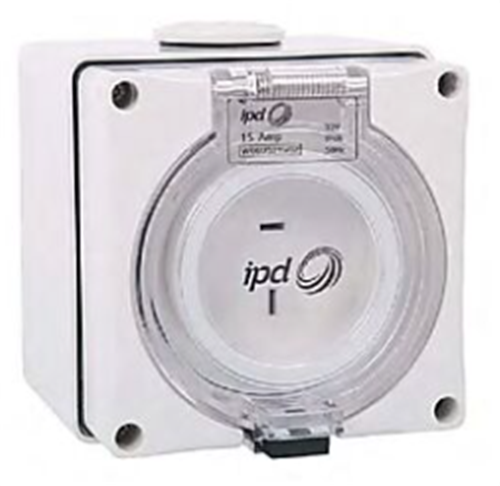

IPD W66US215/32 Unswitched Socket 2 Flat Polarised-Pin 1-Ph 15A 32VAC/DC IP66 Polycarbonate

Product Code: W66US215/32

  • Durable polycarbonate construction
  • IP66 protection for harsh environments
  • Supports 15 A current at 32 VAC/VDC
  • Includes back box for easy installation
  • Features flat polarised pin type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unswitched Socket
Brand
IPD

Electrical

No. of Phases
1
Rated Current (In)
15A
Rated Voltage (Ur)
32 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
6 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M32, (2) M25
Material
Polycarbonate
No. of Pins
2
Pin Type
Flat Polarised

Dimensions & Physical Data

Depth
91mm
Height
101mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3112

Documents

IPD Product Catalogue V17
