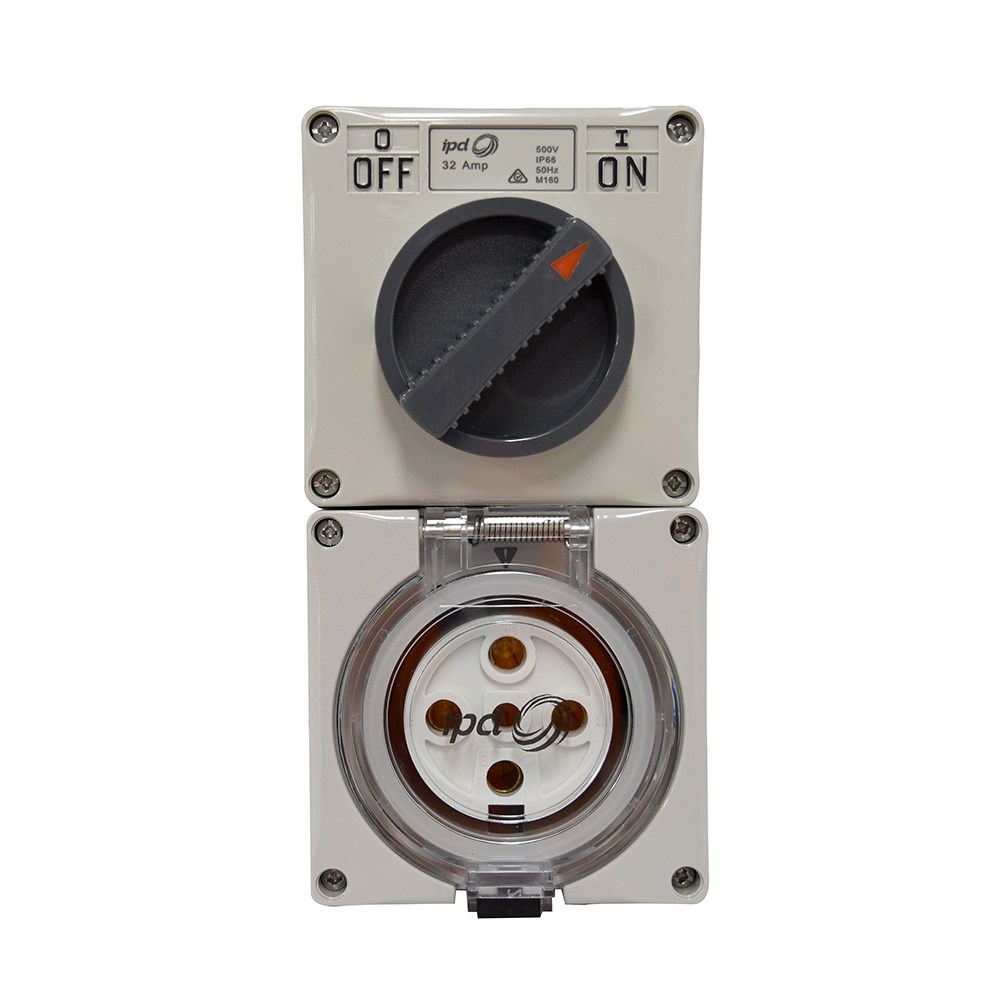

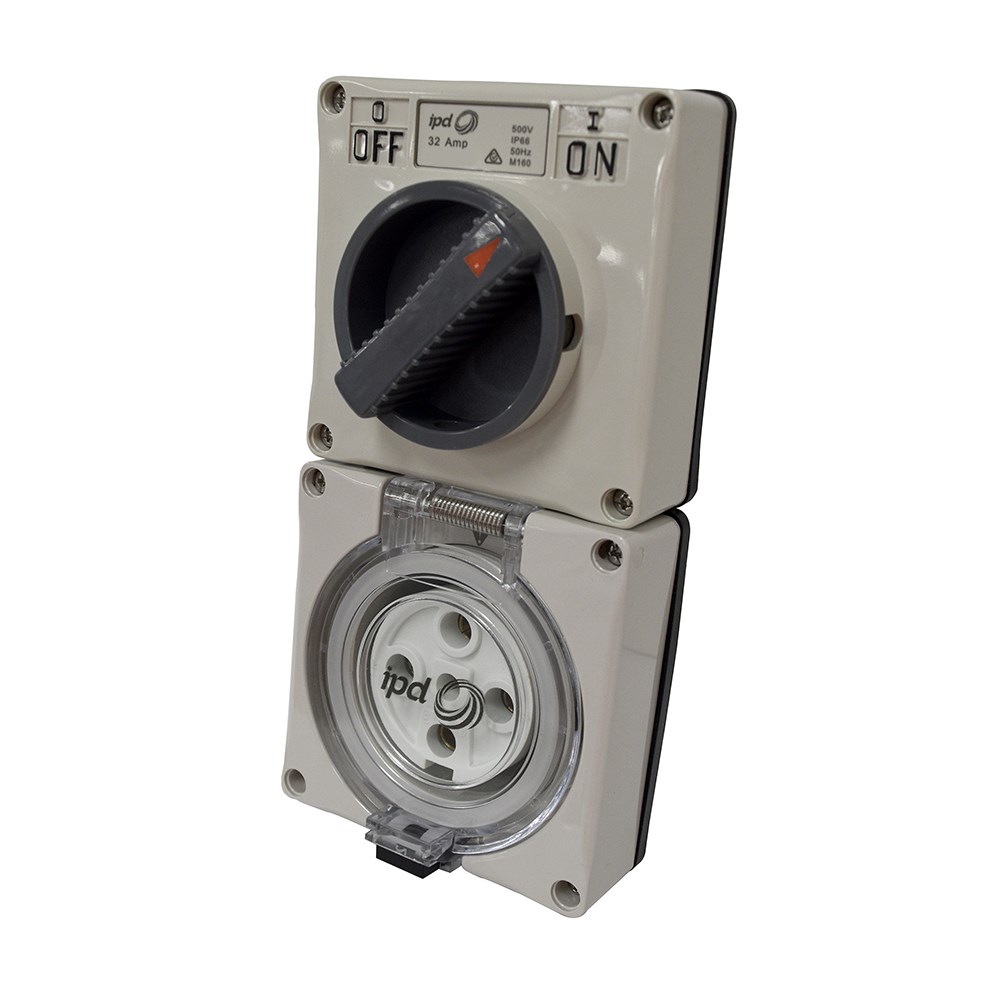

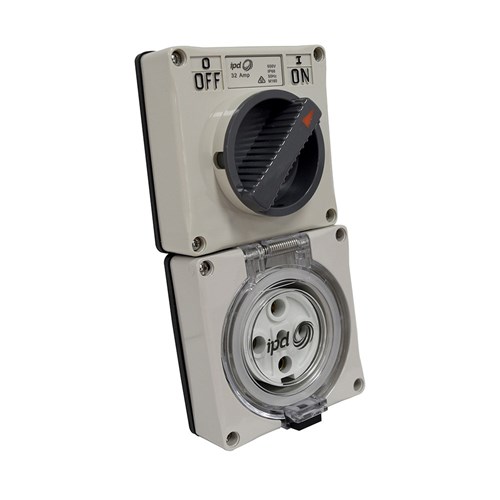

IPD W66SS440LB Switched Outlet 4 Round-Pin 3-Ph 40A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS440LB

  • 40A current rating for robust performance
  • Supports 500V AC/DC applications
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Versatile gland entries: (1) M32, (2) M25
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Outlet
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
40A
Rated Voltage (Ur)
500V
No. of Switching Poles
3
With Neutral Conductor
Yes
With Switch
Yes

Mechanical

Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
4 round
Max. Cable Size
16 mm²
With Base
Base not included

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
