Products

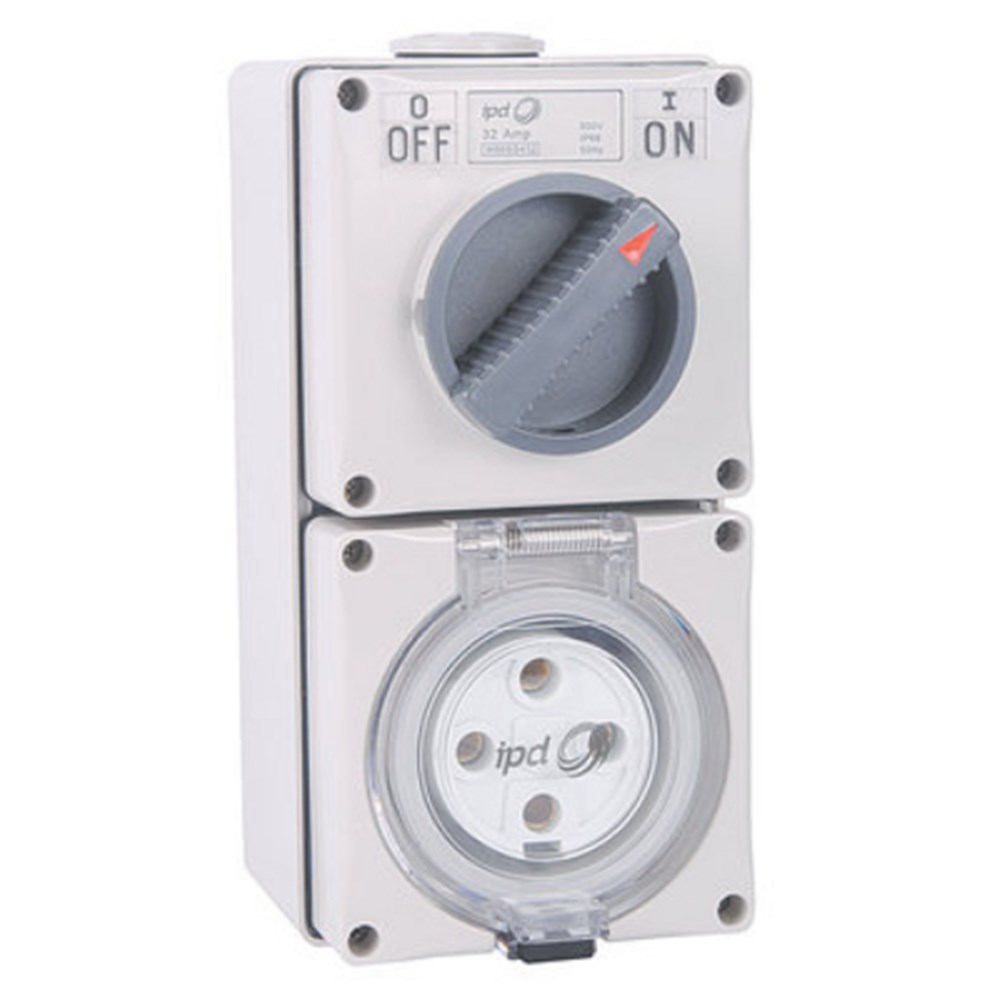

IPD W66SS432 Switched Outlet 3-P 4 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS432

  • 32A outlet with 3 poles for versatile use
  • IP66 rating ensures dust and water protection
  • Supports up to 500 VAC/VDC for high voltage needs
  • Durable polycarbonate construction
  • Multiple gland entries: (1) M32, (2) M25
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Outlet
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
32A
Rated Voltage (Ur)
500V
No. of Switching Poles
3
With Neutral Conductor
Yes
With Switch
Yes

Mechanical

Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
4 round
Max. Cable Size
16 mm²

Dimensions & Physical Data

Size
Full size back box 63mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZ 3123

Documents

IPD Product Catalogue V17
