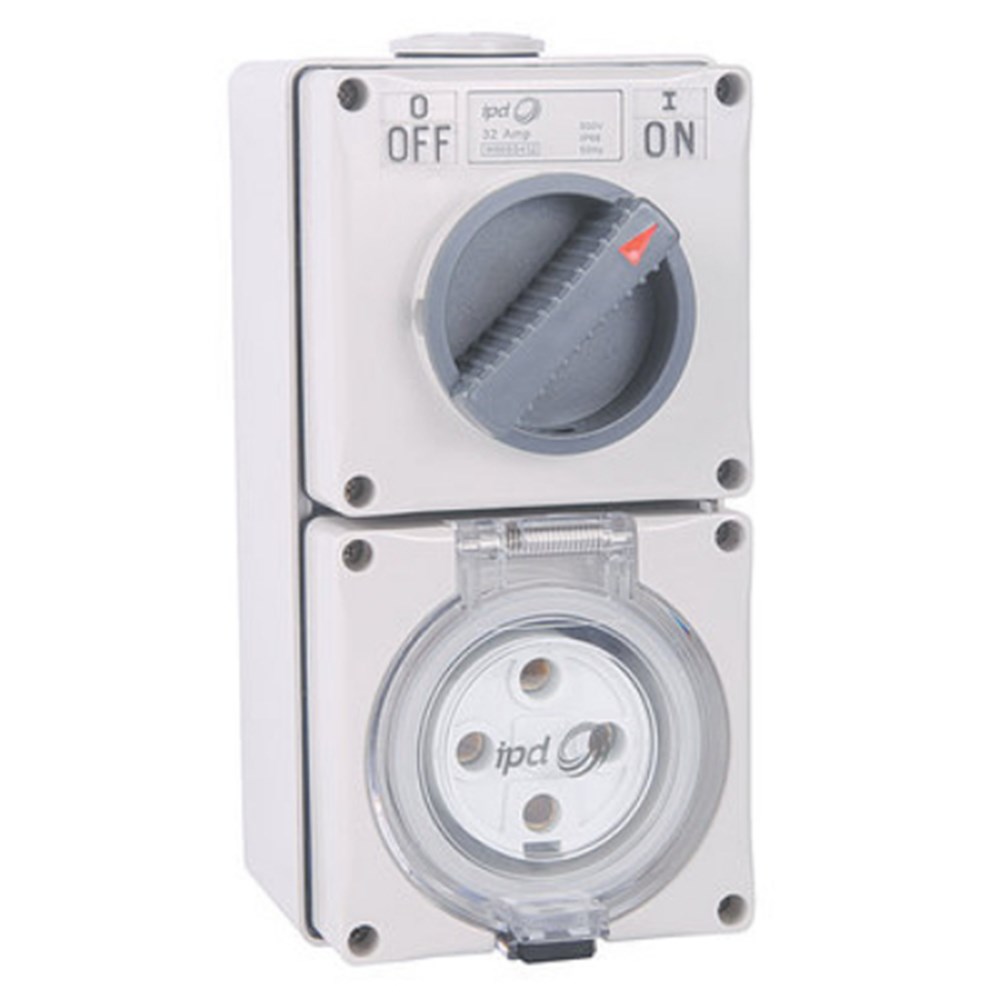

IPD W66SS420 Switched Outlet 3-P 4 Round-Pin 3-Ph 20A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS420

  • 20A outlet with 3 poles
  • IP66 for robust protection
  • Suitable for 500 VAC/VDC use
  • Durable polycarbonate build
  • Includes back box and gland entries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

No. of Phases
3
No. of Poles (Total)
3
Rated Current (In)
20A
Rated Voltage (Ur)
500 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
6 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M32, (2) M25
Material
Polycarbonate
No. of Pins
4
Pin Type
Round

Dimensions & Physical Data

Depth
110mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IEC 947-3/AS3133/AS3123

Documents

IPD Product Catalogue V17
