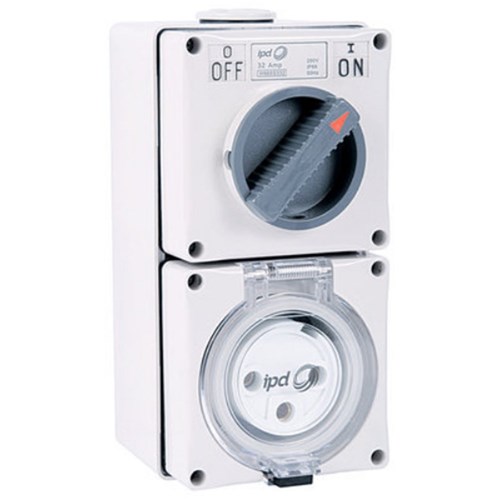

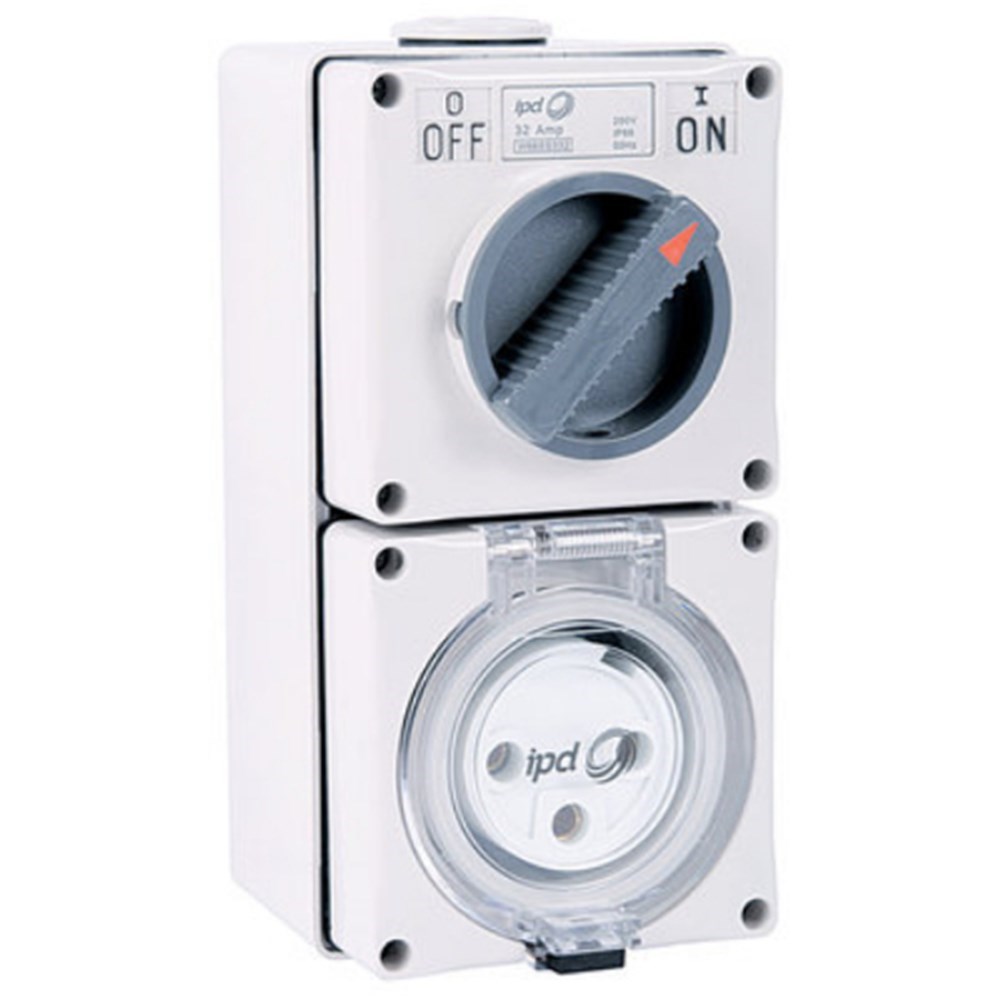

IPD W66SS332 Switched Outlet 3-P 3 Round-Pin 1-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS332

  • 32A, 500V AC/DC rated outlet
  • Durable polycarbonate material
  • IP66 protection for harsh environments
  • Includes back box and multiple gland entries
  • Complies with IEC947-3/AS3133/AS3123 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

No. of Phases
1
No. of Poles (Total)
3
Rated Current (In)
32A
Rated Voltage (Ur)
500 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
16 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M32, (2) M25
Material
Polycarbonate
No. of Pins
3
Pin Type
Round

Dimensions & Physical Data

Depth
110mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IEC 947-3/AS3133/AS3123

Documents

IPD Product Catalogue V17
