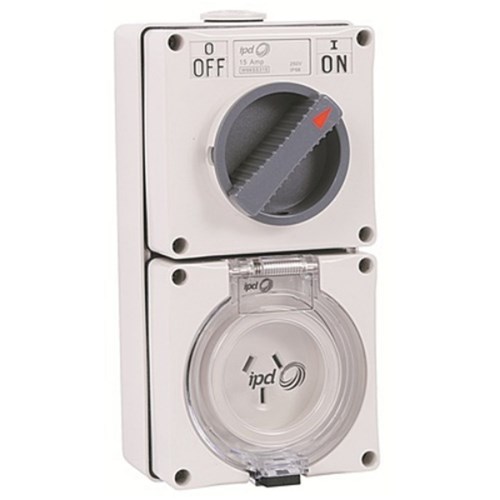

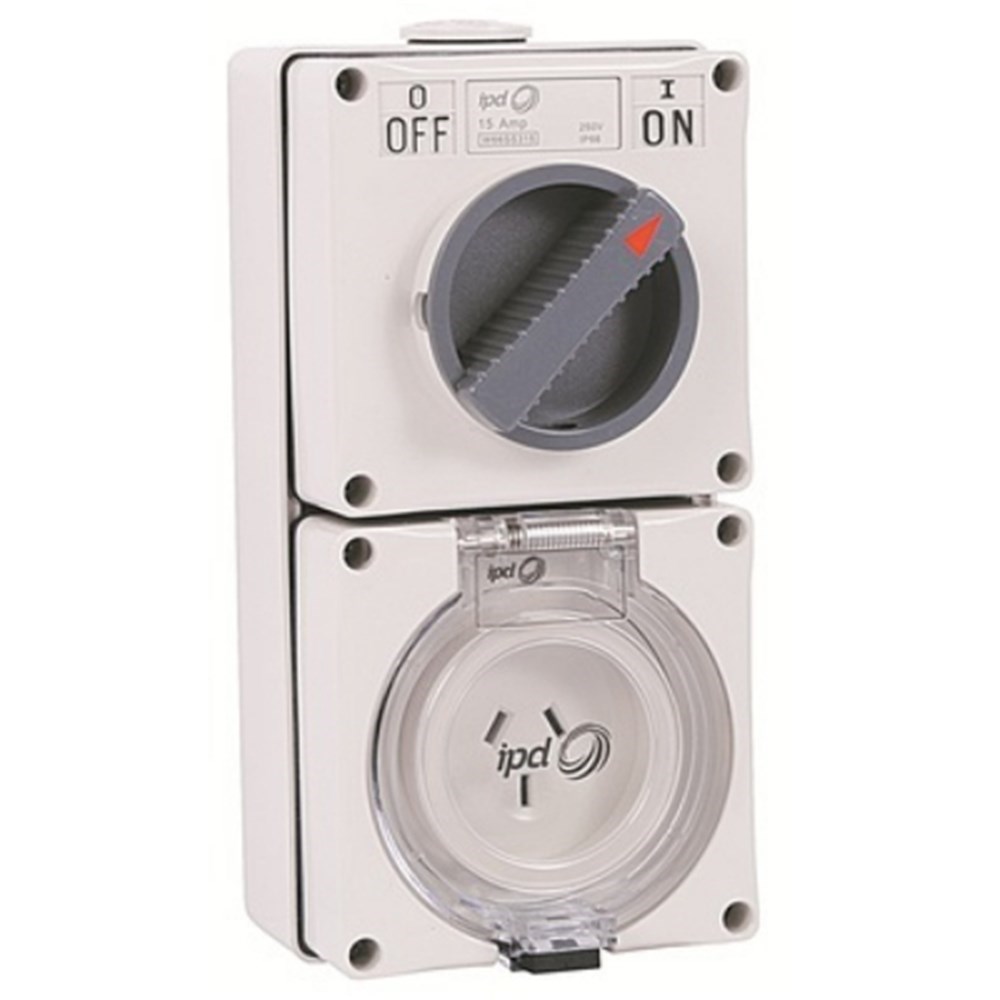

IPD W66SS320F Switched Outlet 2-P 3 Flat-Pin 1-Ph 20A 250VAC/DC IP66 Polycarbonate

Product Code: W66SS320F

  • 20A current capacity for robust power needs
  • IP66 protection for dust and water resistance
  • Durable polycarbonate construction
  • Compatible with 250V AC/DC systems
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

No. of Phases
1
No. of Poles (Total)
2
Rated Current (In)
20A
Rated Voltage (Ur)
250 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
6 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M25, (2) M20
Material
Polycarbonate
No. of Pins
3
Pin Type
Flat

Dimensions & Physical Data

Depth
110mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IEC 947-3/AS3133/AS3112

Documents

IPD Product Catalogue V17
