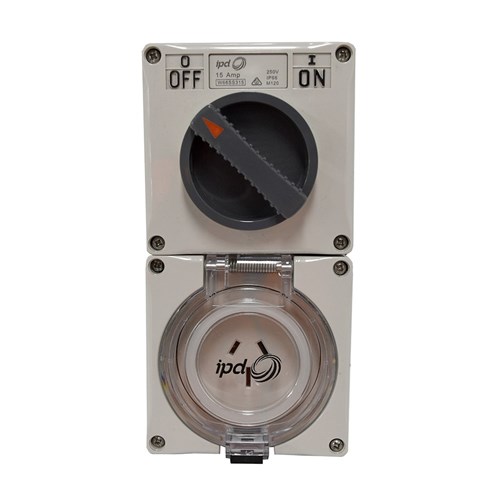

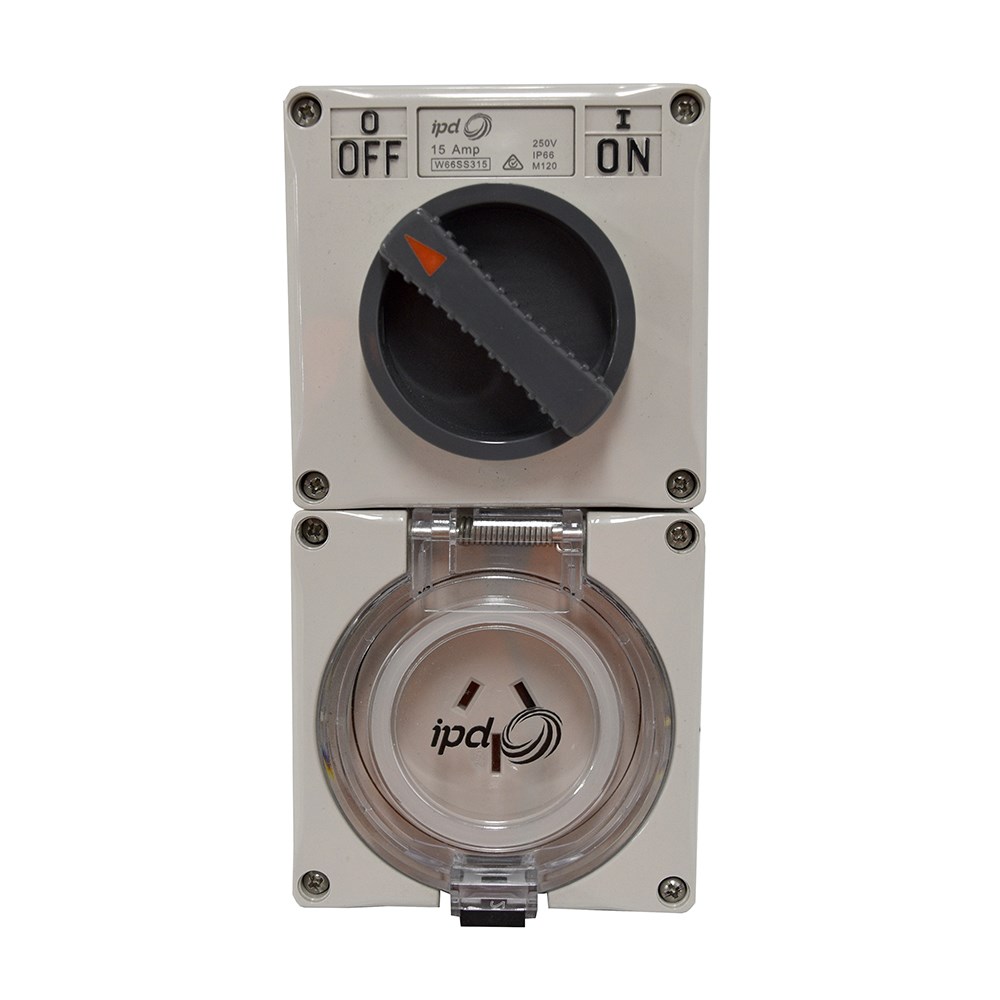

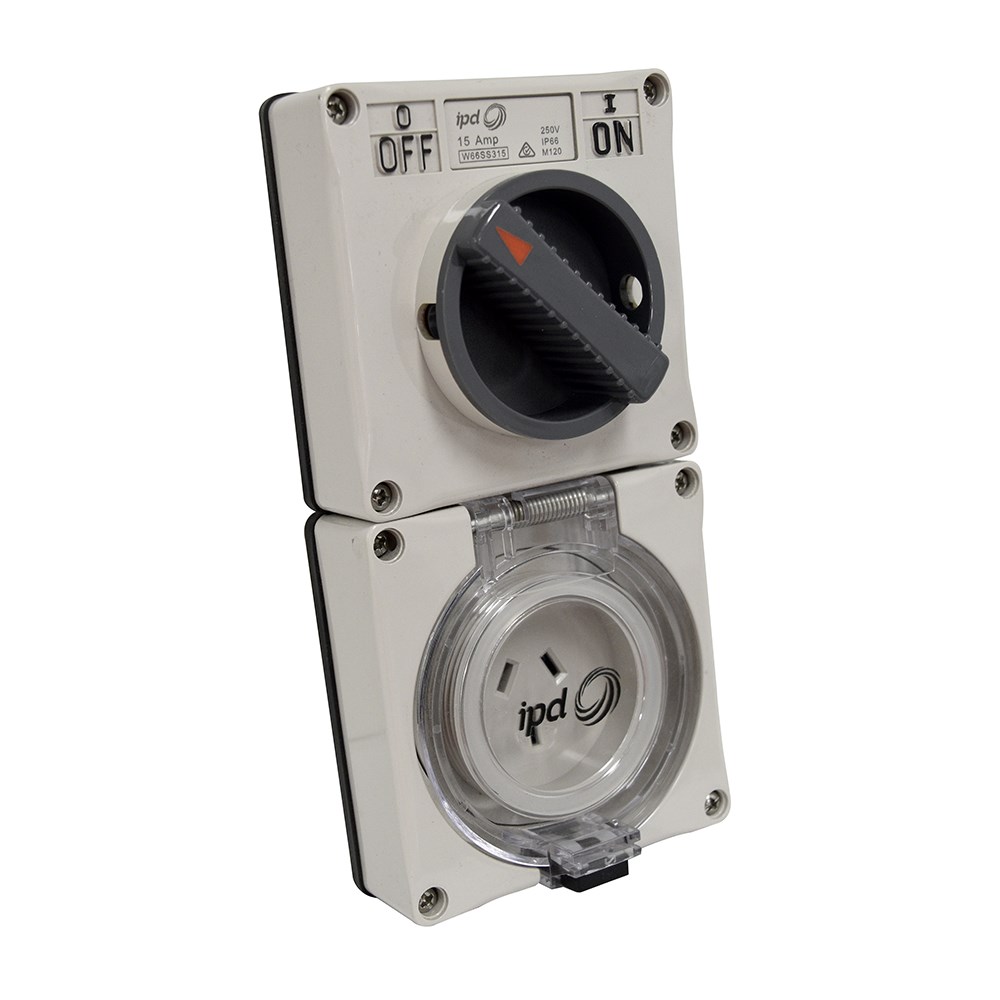

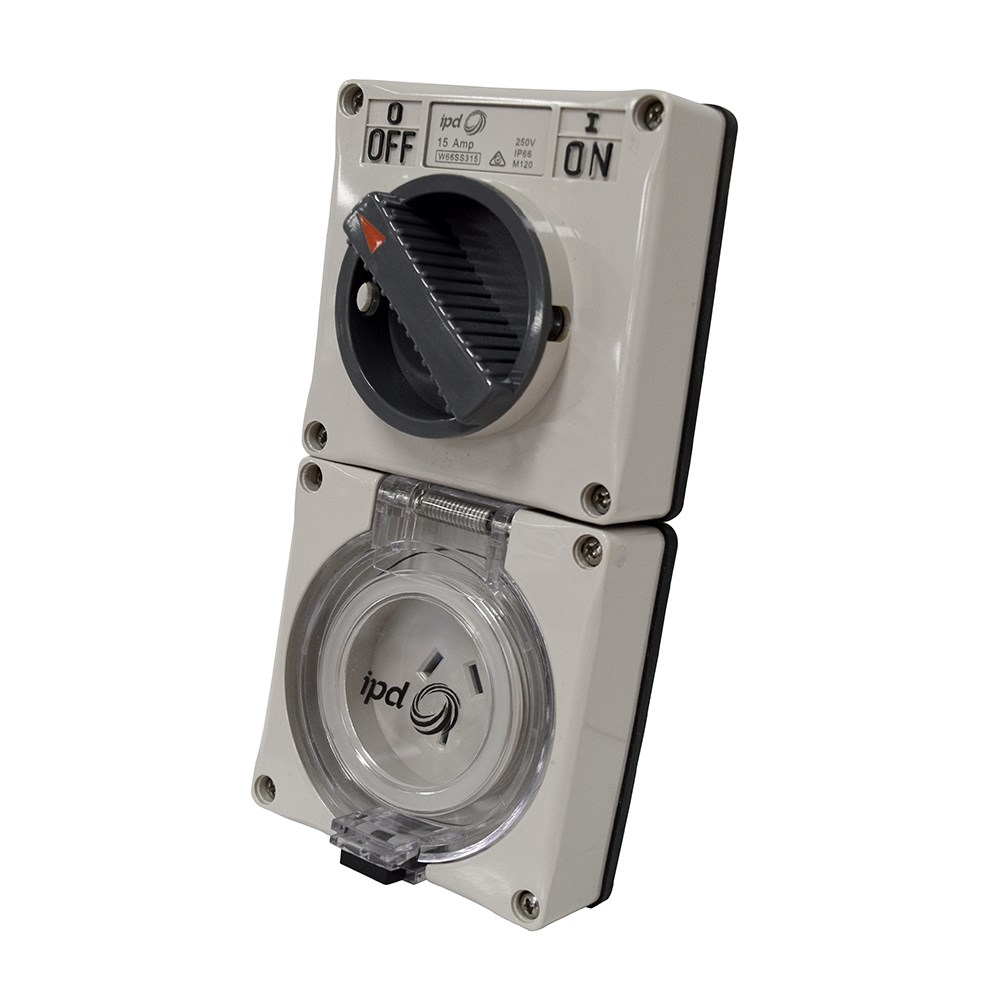

IPD W66SS315 Switched Outlet 3 Flat-Pin 1-Ph 15A 250VAC/DC IP66 Polycarbonate

Product Code: W66SS315

  • 15A, 250V rated for robust performance
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Includes back box for easy installation
  • Multiple gland entries: (1) M25, (2) M20
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

No. of Phases
1
Rated Current (In)
15A
Rated Voltage (Ur)
250 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
6 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M25, (2) M20
Material
Polycarbonate
No. of Pins
3
Pin Type
Flat

Dimensions & Physical Data

Depth
85mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IEC 947-3/AS3133/AS3112

Documents

IPD Product Catalogue V17
