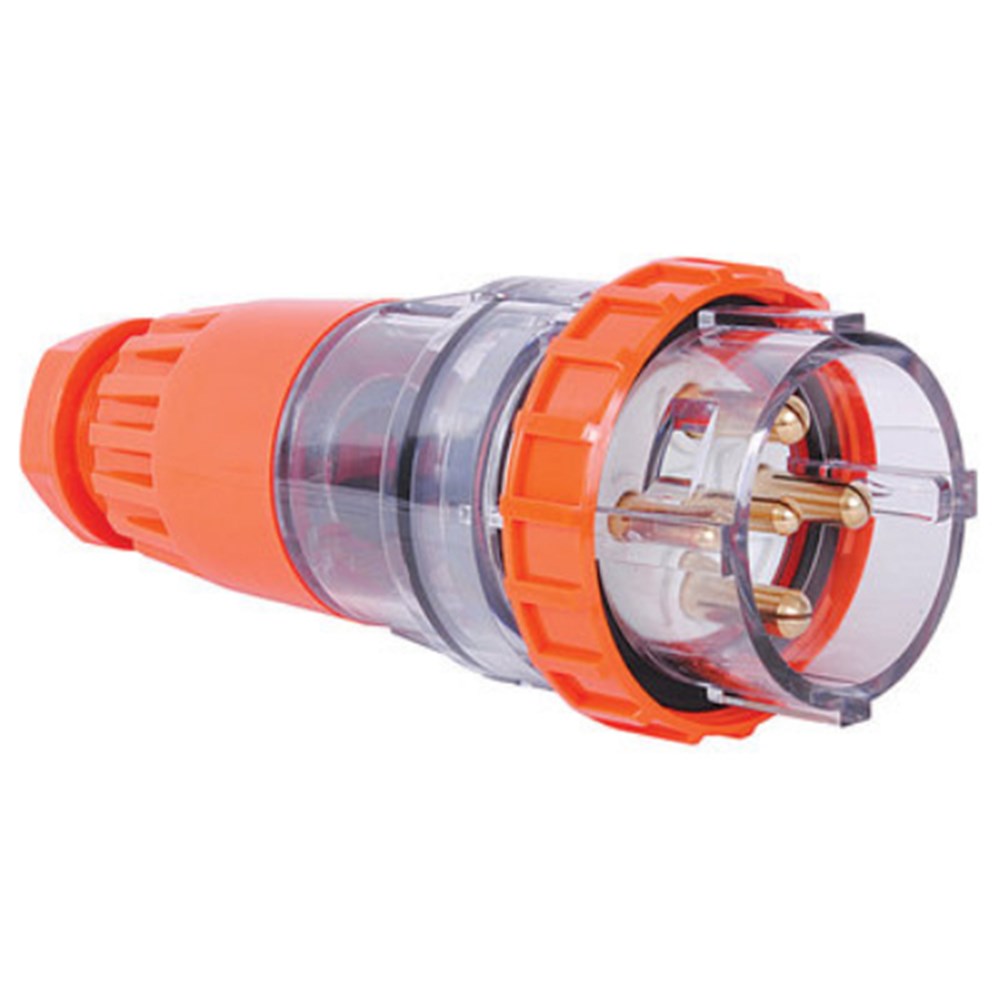

IPD W66SP540 Straight Plug 5 Round-Pin 3-Ph 40A 500VAC/DC IP66 Polycarbonate

Product Code: W66SP540

  • Rated for 40 A and 500 VAC/VDC
  • IP66 protection for harsh environments
  • Durable polycarbonate construction
  • Supports 16 sq-mm cable cross-section
  • Compression gland with 37 mm entry
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
40A
Rated Voltage (Ur)
500V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Clear/Orange
Material
PCA 18 virgin grade plastics
No. of Pins
5 Pin
Pin Type
5 round

Dimensions & Physical Data

Height
146.65mm
Width
78mm (dia.)

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
