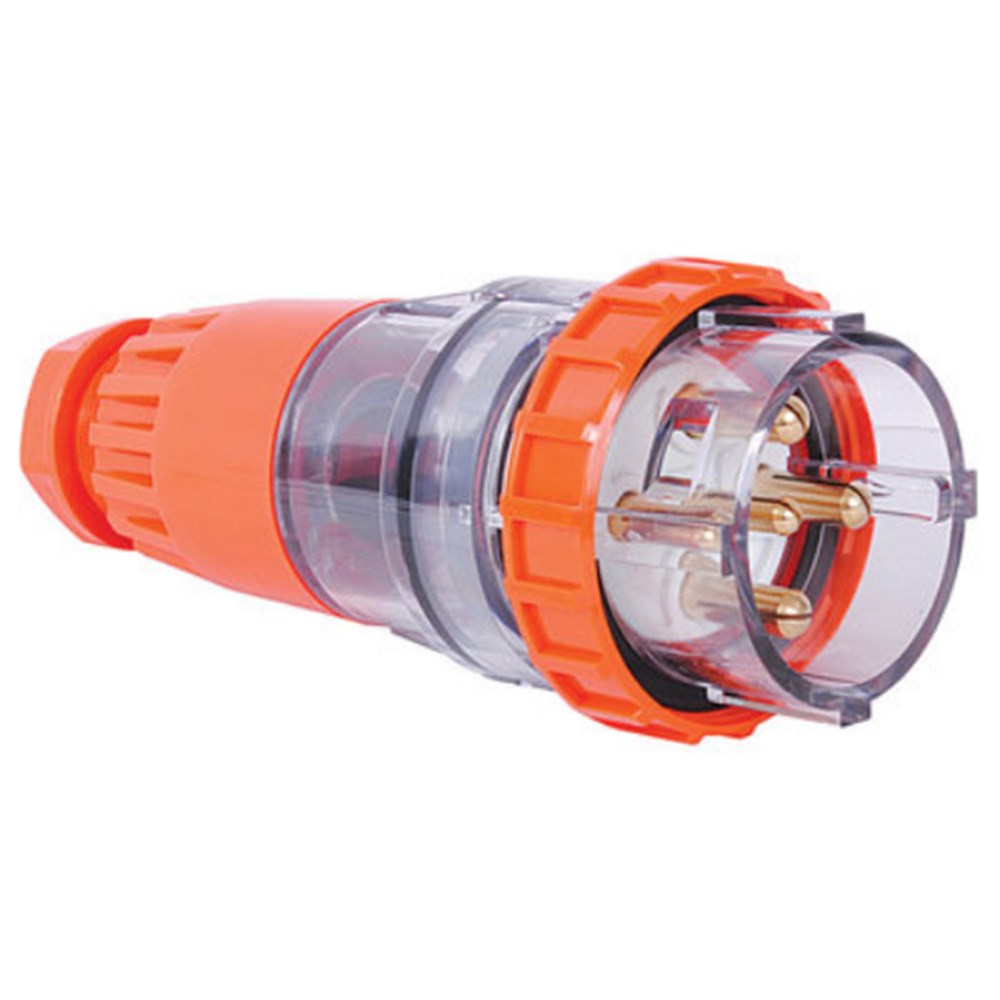

IPD W66SP532 Straight Plug 5 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66SP532

  • Rated for 32 A and 500 VAC/VDC
  • Complies with AS3123 standards
  • Durable polycarbonate construction
  • IP66 protection against dust and water
  • Compression gland for secure fit
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD

Electrical

No. of Phases
3
Rated Current (In)
32A
Rated Voltage (Ur)
500 VAC/VDC

Mechanical

Cable Cross Section
16 sq-mm
Cover Colour
Clear/Orange
Gland Entries
37 mm
Gland Style
Compression
Material
Polycarbonate
No. of Pins
5
Pin Type
Round

Dimensions & Physical Data

Diameter
78mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
