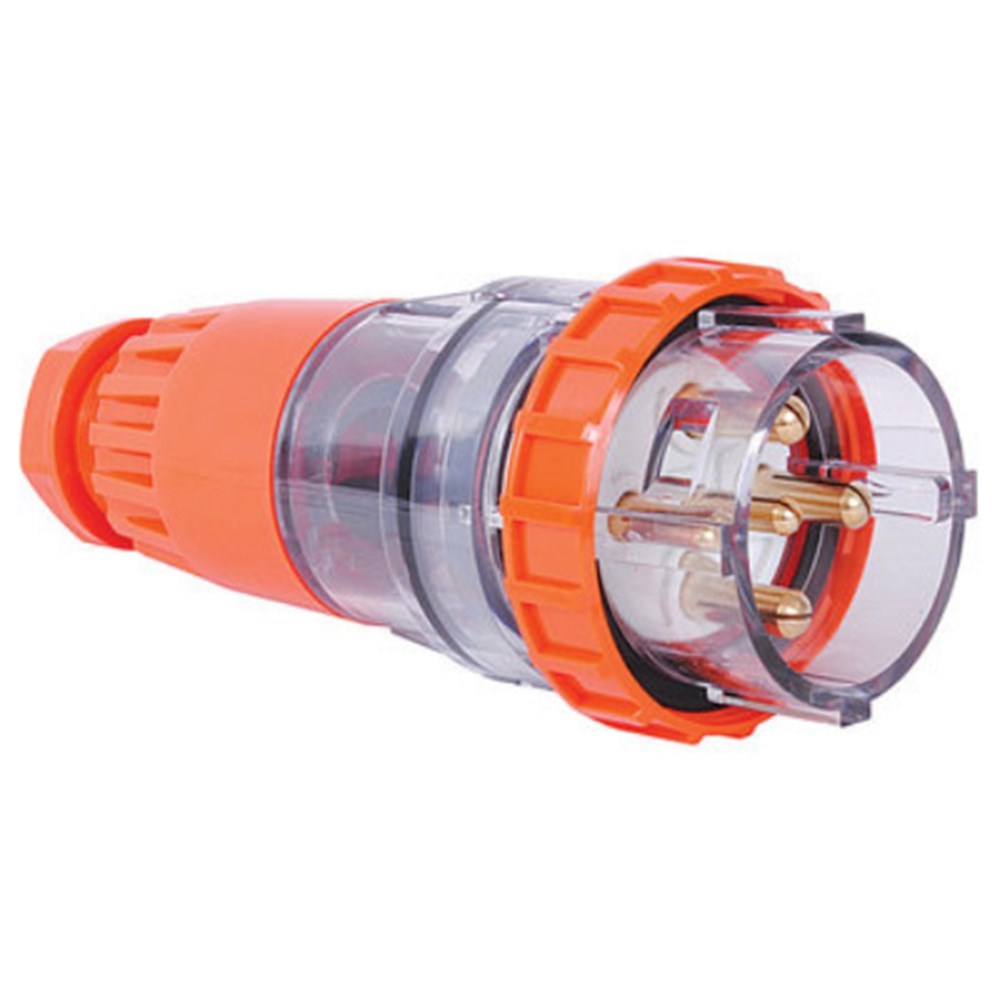

IPD W66SP510 Straight Plug 5 Round-Pin 3-Ph 10A 500VAC/DC IP66 Polycarbonate

Product Code: W66SP510

  • Rated for 10 A, 500 VAC/VDC
  • Complies with AS3123 standards
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • M25 gland entry, small body design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
3 phase
Rated Current (In)
0.416667
Rated Voltage (Ur)
500 V AC
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Clear / orange
Gland Entries
M25
Material
Polycarbonate
No. of Pins
5 Pin
Pin Type
Round
Max. Cable Size
6 mm²

Dimensions & Physical Data

Length
187 mm
Width
Ø 78 mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123
Certifications / Approvals
Energy Safe Victoria compliance
