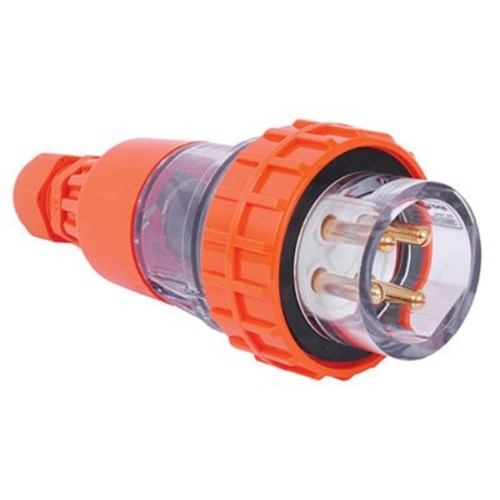

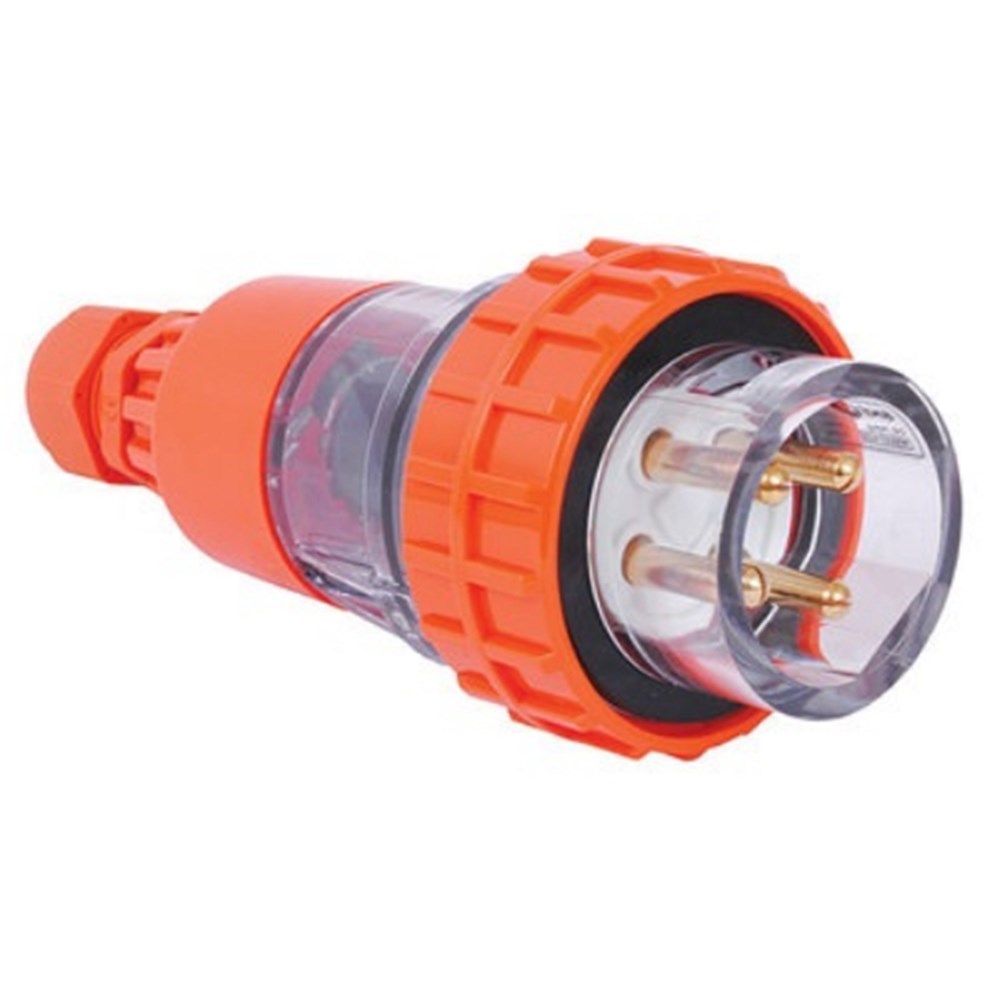

IPD W66SP450 Straight Plug 4 Round-Pin 3-Ph 50A 500VAC/DC IP66 Polycarbonate

Product Code: W66SP450

  • Rated for 50 A and 500 VAC/VDC use
  • Durable polycarbonate construction
  • IP66 protection against dust and water
  • Suitable for 16 sq-mm cable cross section
  • Compression gland with 37 mm entry
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
3 phase
Rated Current (In)
50A
Rated Voltage (Ur)
500V AC
No. of Switching Poles
3
With Neutral Conductor
No

Mechanical

Colour
Clear / orange
Gland Entries
Compression gland, 37 mm thread
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
16 mm²

Dimensions & Physical Data

Length
182mm
Width
Ø 78mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123
Certifications / Approvals
Energy Safe Victoria compliance

Documents

IPD Product Catalogue V17
