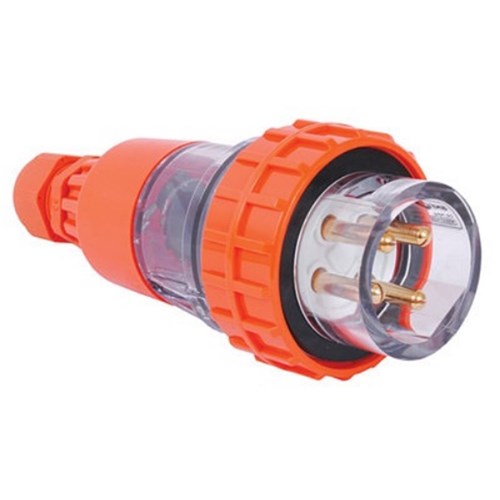

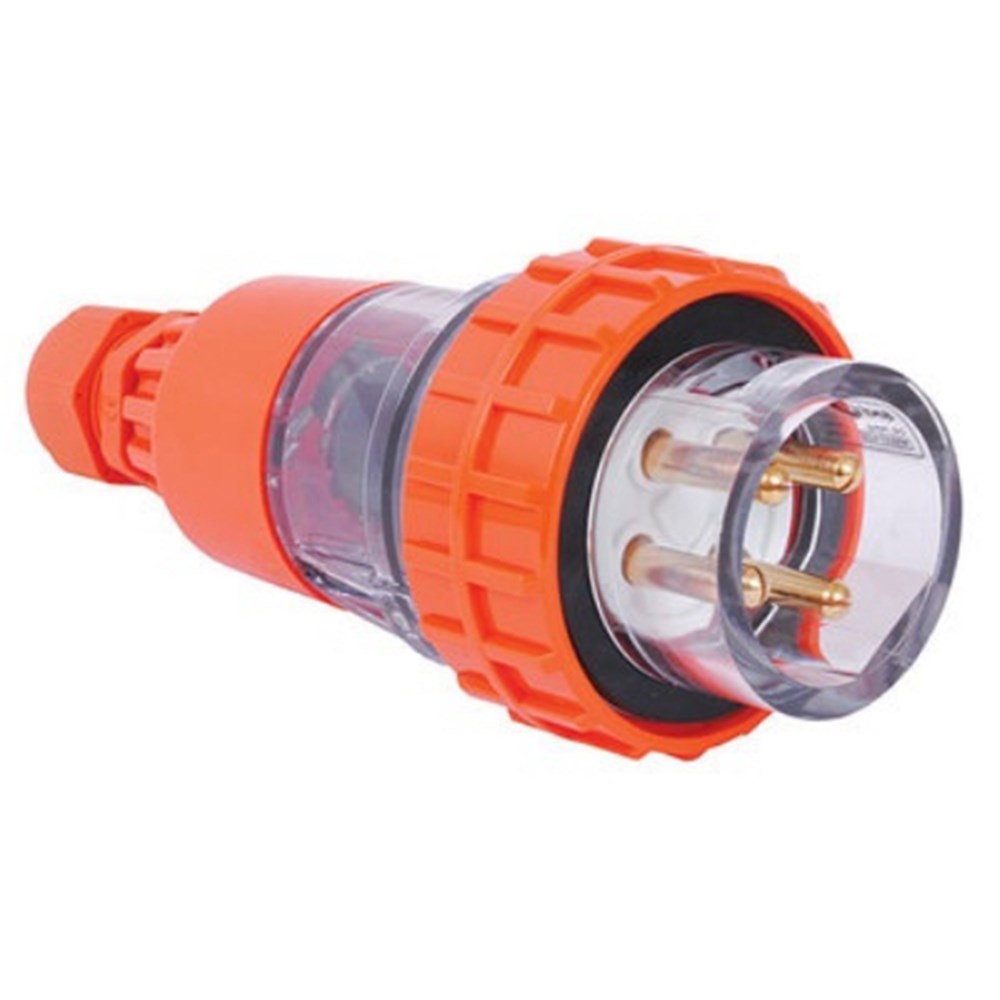

IPD W66SP440 Straight Plug 4 Round-Pin 3-Ph 40A 500VAC/DC IP66 Polycarbonate

Product Code: W66SP440

  • Rated for 40 A and 500 VAC/VDC
  • Complies with AS3123 standards
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Round pin type design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
40A
Rated Voltage (Ur)
500V
No. of Switching Poles
3
With Neutral Conductor
Yes

Mechanical

Colour
Clear/Orange
Material
PCA 18 virgin grade plastics
No. of Pins
4 Pin
Pin Type
4 round

Dimensions & Physical Data

Height
146.65mm
Width
78mm (dia.)

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
