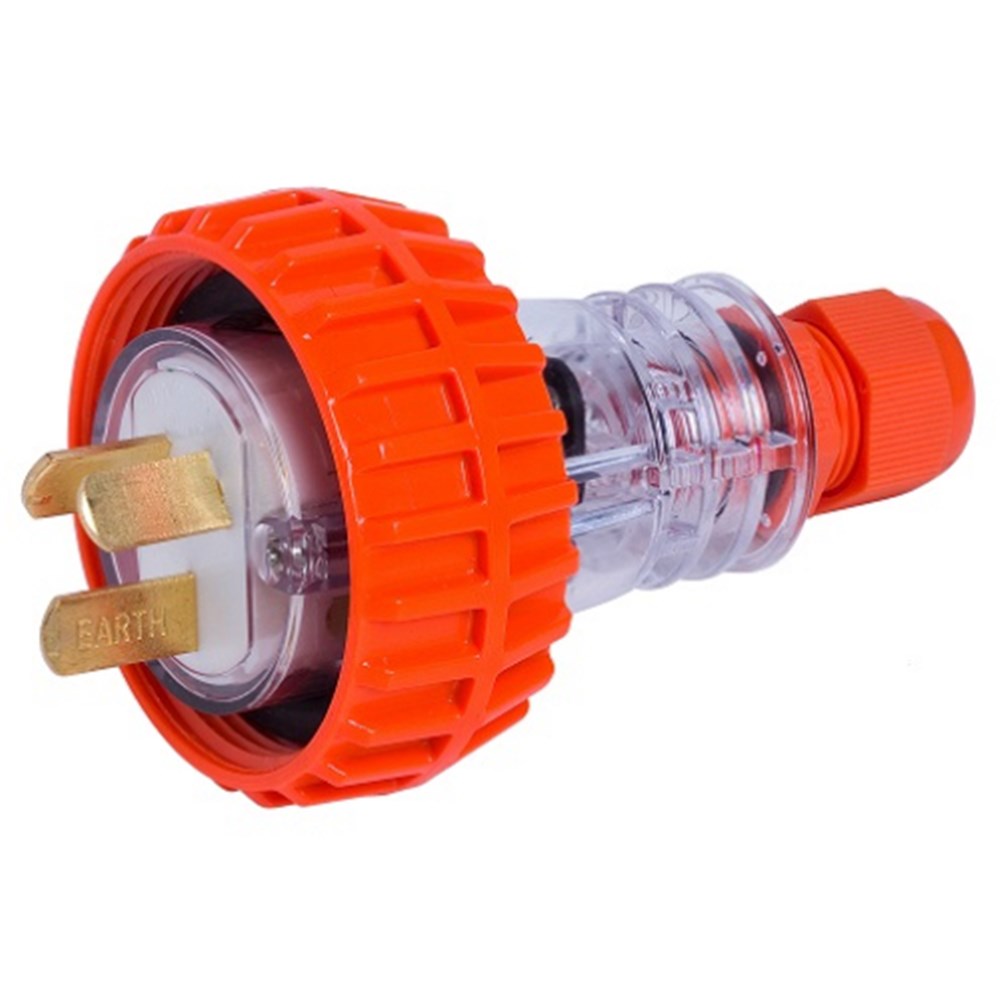

IPD W66SP320F Straight Plug 3 Flat-Pin 1-Ph 20A 250VAC/DC IP66 Polycarbonate

Product Code: W66SP320F

  • 20A rated current for robust performance
  • Complies with AS3112 standards
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Suitable for 250 VAC/VDC applications
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
1 phase
Rated Current (In)
20A
Rated Voltage (Ur)
250V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Clear/Orange
Material
PCA 18 virgin grade plastics
No. of Pins
3 Pin
Pin Type
3 flat

Dimensions & Physical Data

Height
94.83mm
Width
70mm (dia.)

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
