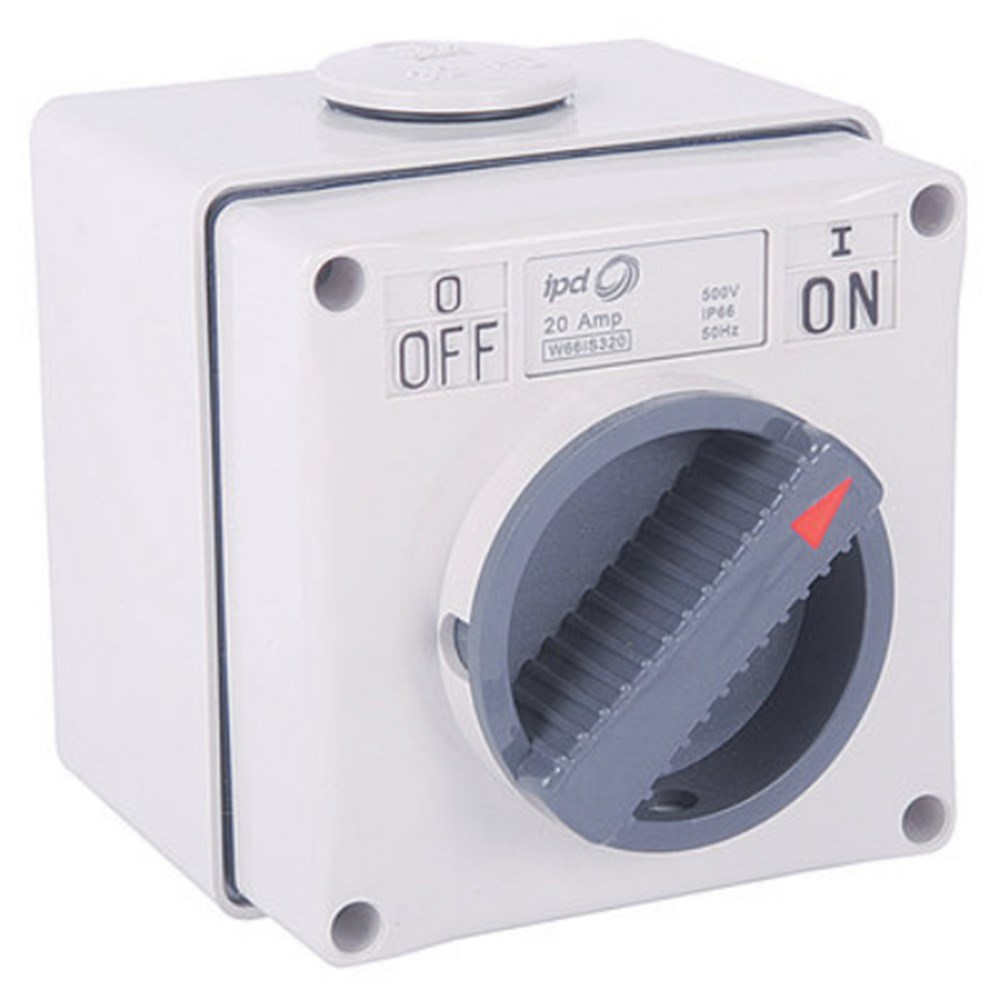

IPD W66IS320 Motor Rated Isolating Switch 3-P 20A 500VAC/DC IP66 Polycarbonate

Product Code: W66IS320

  • 20 A, 3-pole isolator for reliable operation
  • IP66 protection for harsh environments
  • Supports up to 500 VAC/VDC voltage
  • Durable polycarbonate construction
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Motor Rated Isolating Switch
Brand
IPD

Electrical

No. of Poles (Total)
3
Rated Current (In)
20A
Rated Voltage (Ur)
500 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
16 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(2) M25, (1) M32
Material
Polycarbonate

Dimensions & Physical Data

Depth
109mm
Height
101mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
IEC 947-3/AS3133

Documents

IPD Product Catalogue V17
