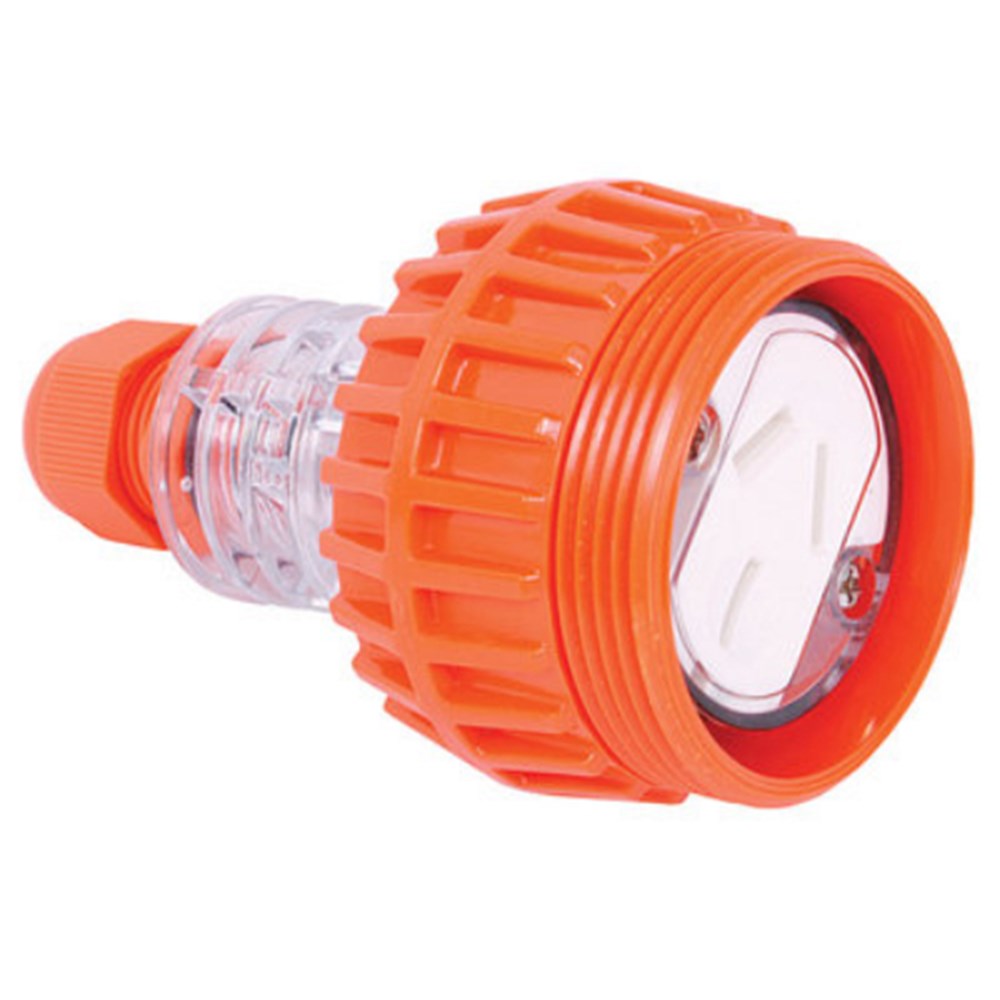

IPD W66ES320F Extension Socket 3 Flat-Pin 1-Ph 20A 250VAC/DC IP66 Polycarbonate

Product Code: W66ES320F

  • 20A socket with IP66 protection
  • Suits 250VAC/VDC applications
  • Durable polycarbonate construction
  • Compact design with M20 gland entry
  • Flat pin configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
1 phase
Rated Current (In)
20A
Rated Voltage (Ur)
250 VAC/VDC
With Neutral Conductor
Yes

Mechanical

Colour
Clear / orange
Gland Entries
M20
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Flat
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Length
110mm
Width
Ø 66mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3112
Certifications / Approvals
RCM

Documents

IPD Product Catalogue V17
