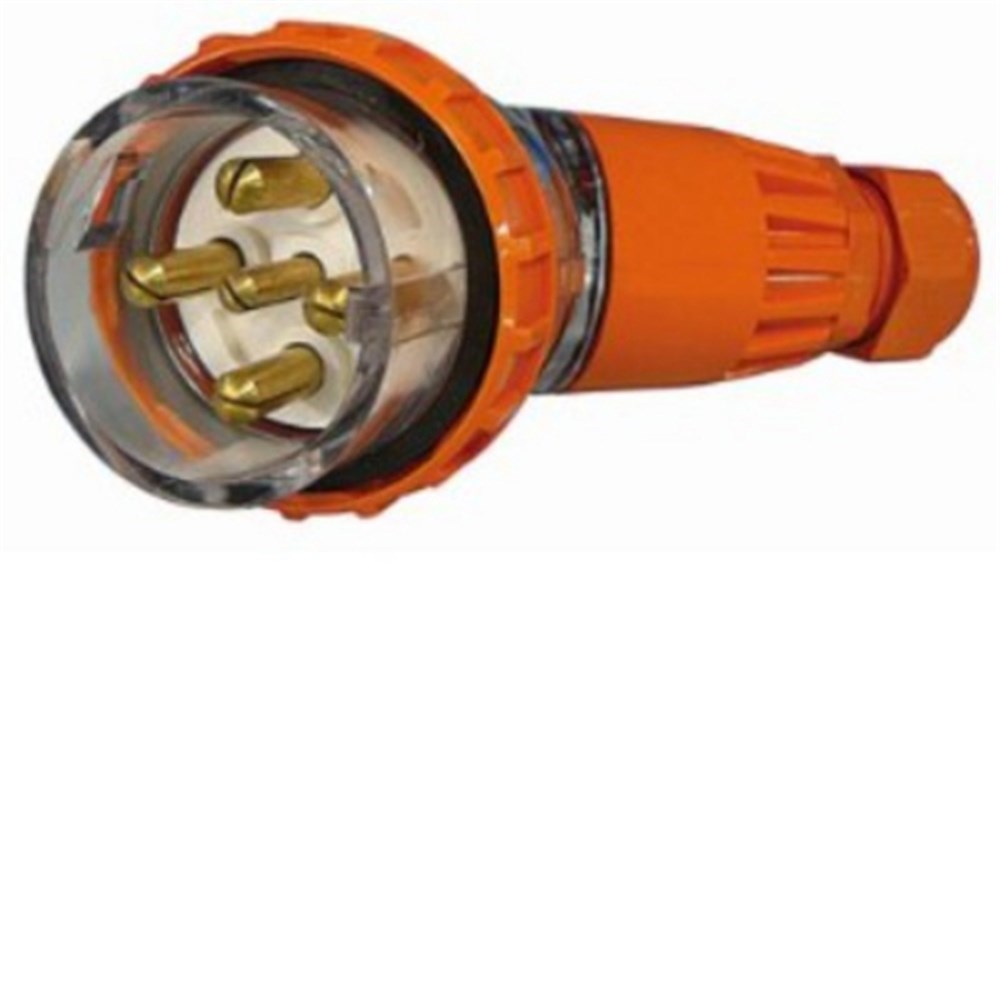

IPD W66AP550 Angled Plug 5 Round-Pin 3-Ph 50A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP550

  • 50 A current rating
  • Suitable for 500 VAC/VDC
  • IP66 weatherproof protection
  • Durable polycarbonate build
  • Compression gland, 37 mm entry
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Angled Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
50A
Rated Voltage (Ur)
500V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Material
Polycarbonate
No. of Pins
5 Pin
Max. Cable Size
16 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
