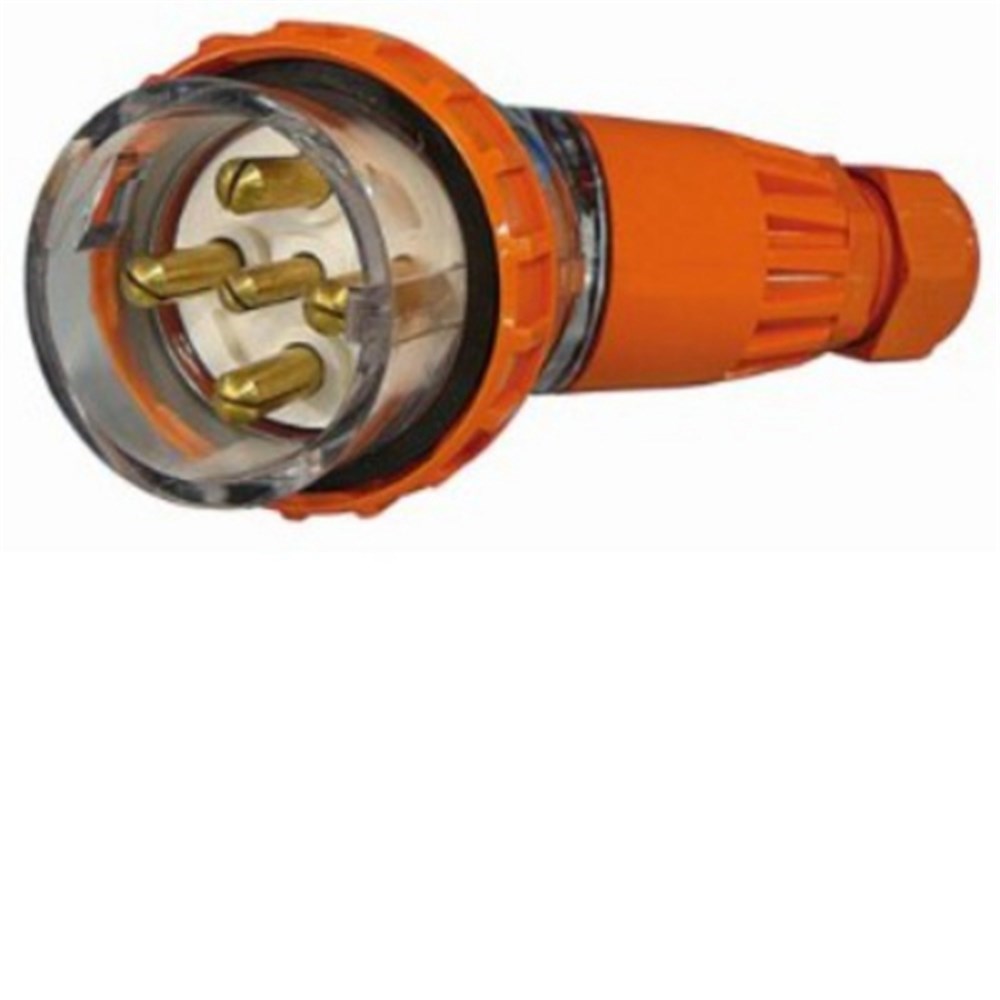

IPD W66AP532 Angled Plug 5 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP532

  • 32 A rated current for robust performance
  • Operates at 500 VAC/VDC
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Compression gland with 37 mm entries
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Angled Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
32A
Rated Voltage (Ur)
500V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Material
Polycarbonate
No. of Pins
5 Pin
Max. Cable Size
16 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
