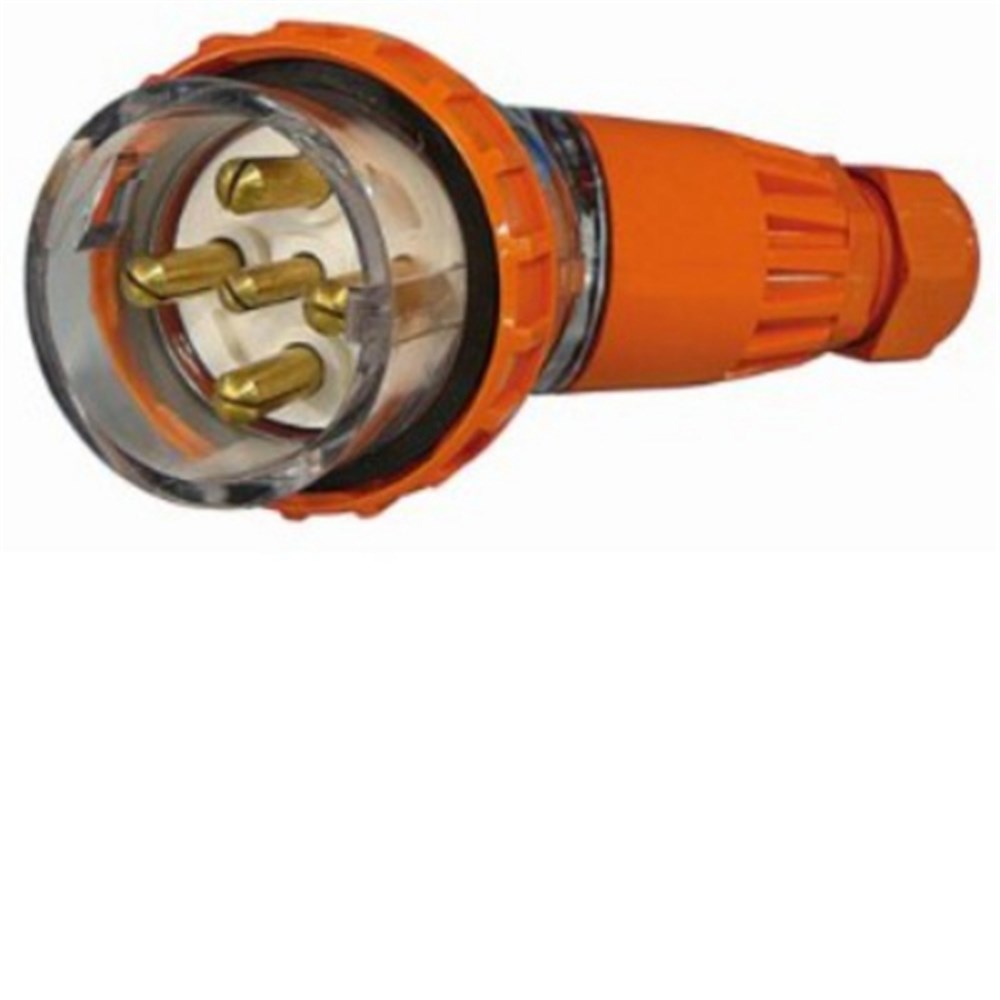

IPD W66AP510 Angled Plug 5 Round-Pin 3-Ph 10A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP510

  • Rated for 10 A, 500 VAC/VDC
  • Complies with AS3123 standards
  • Durable polycarbonate construction
  • IP66 protection against dust and water
  • Suitable for 6 sq-mm cables
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Angled Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
0.416667
Rated Voltage (Ur)
500 V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Material
Polycarbonate
No. of Pins
5 Pin
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
