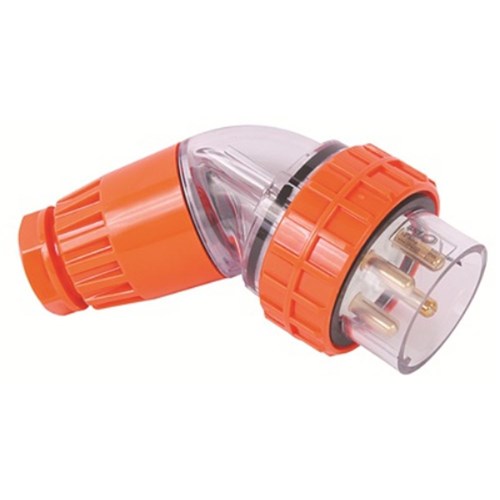

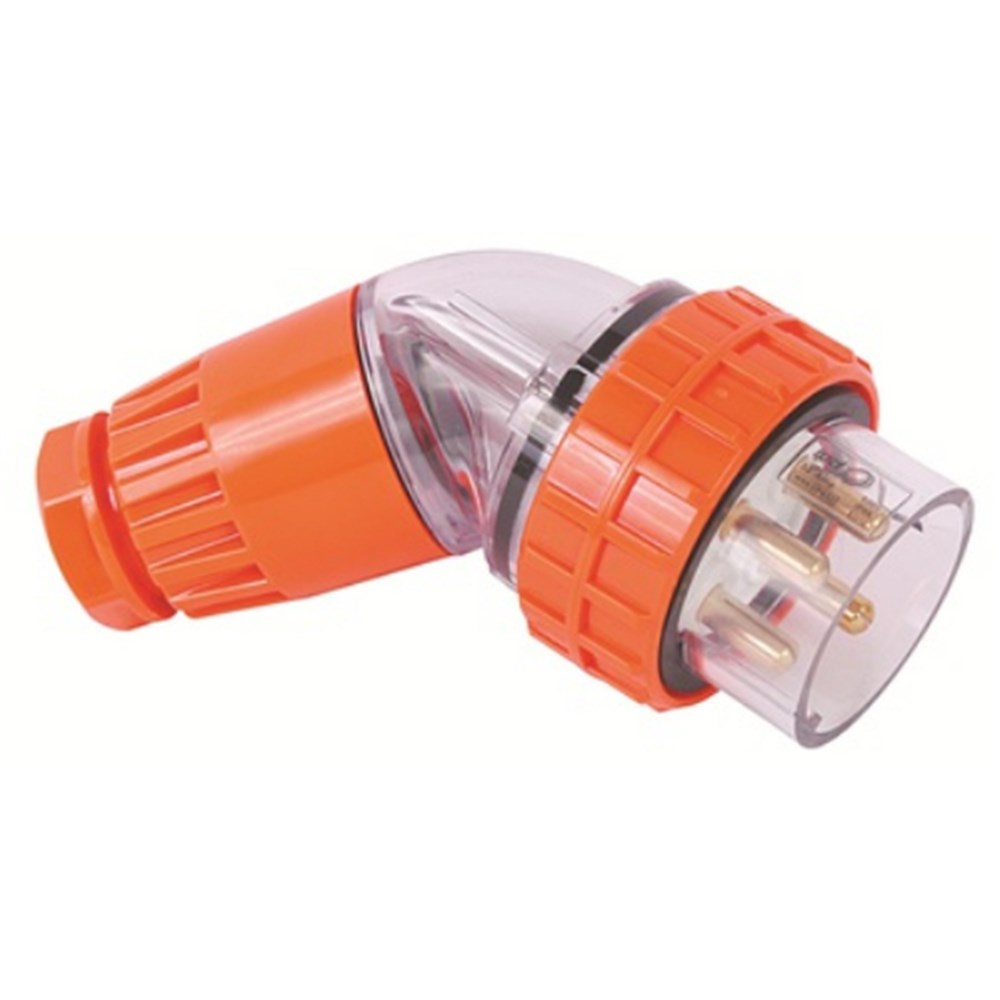

IPD W66AP410 Angled Plug 4 Round-Pin 3-Ph 10A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP410

  • 10 A, 500 VAC/VDC rated plug
  • IP66 protection for harsh environments
  • Durable polycarbonate construction
  • M25 gland entries with small body style
  • Supports 6 sq-mm cable cross section
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Angled Plug
Brand
IPD
Series
W66

Electrical

No. of Phases
3 phase
Rated Current (In)
0.416667
Rated Voltage (Ur)
500 V
No. of Switching Poles
3
With Neutral Conductor
Yes

Mechanical

Material
Polycarbonate
No. of Pins
4 Pin
Max. Cable Size
6 mm²

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 3123:2005, RCM

Documents

IPD Product Catalogue V17
