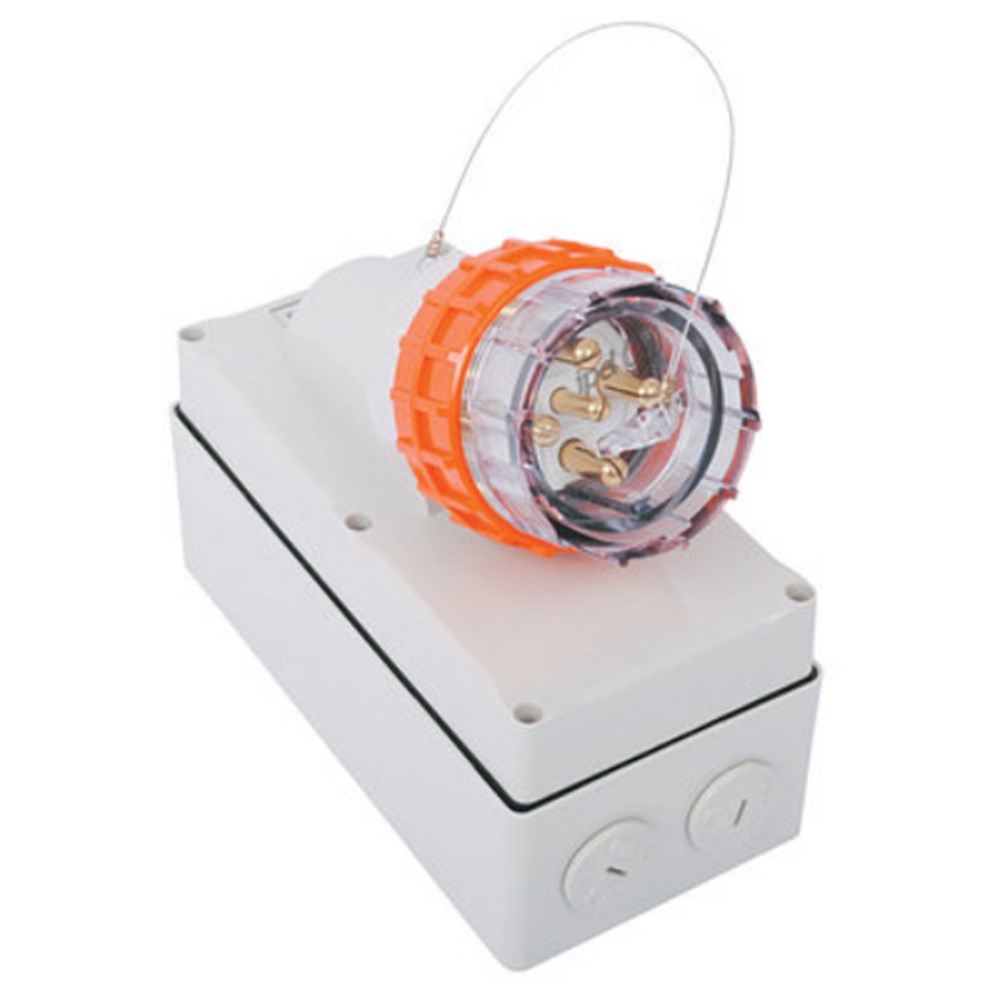

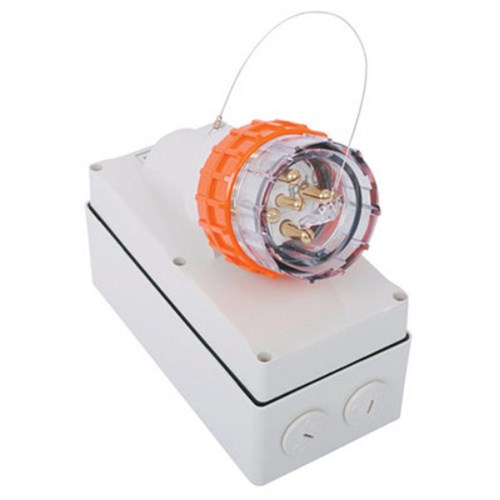

IPD W66AI532 Appliance Inlet 5 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66AI532

  • 32 A appliance inlet for robust power needs
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Supports cable sizes up to 16 sq-mm
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD

Electrical

No. of Phases
3
Rated Current (In)
32A
Rated Voltage (Ur)
500 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
16 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M32, (2) M25
Material
Polycarbonate
No. of Pins
5
Pin Type
Round

Dimensions & Physical Data

Depth
188mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
