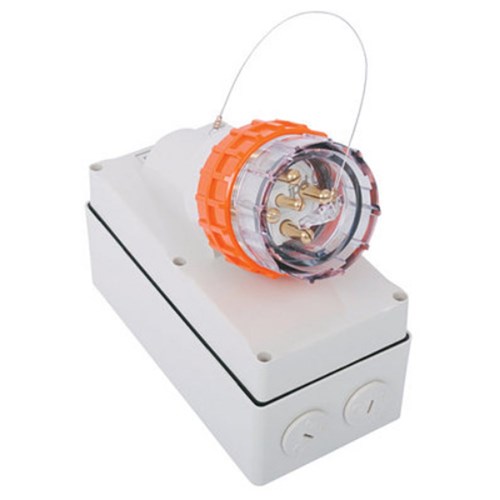

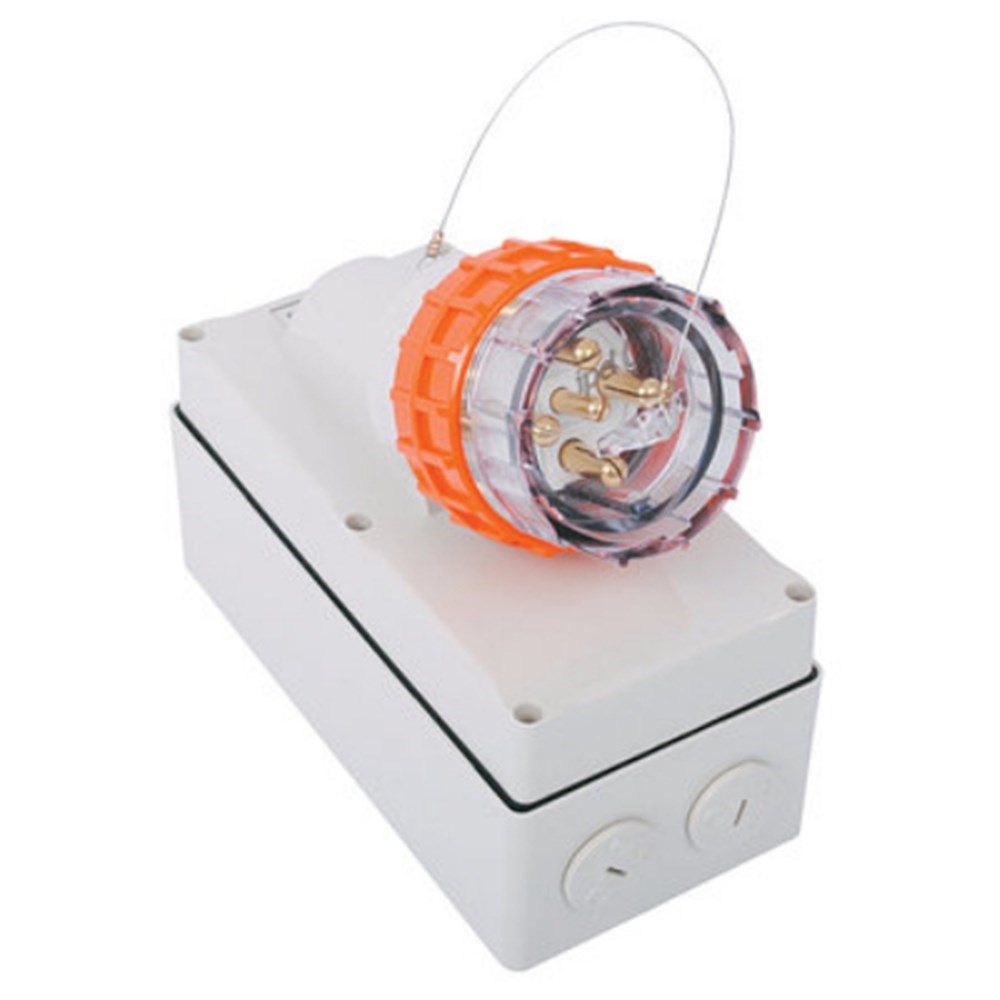

IPD W66AI510 Appliance Inlet 5 Round-Pin 3-Ph 10A 500VAC/DC IP66 Polycarbonate

Product Code: W66AI510

  • 10 A appliance inlet, 500 VAC/VDC
  • IP66 protection for harsh environments
  • Durable polycarbonate construction
  • Includes back box for easy installation
  • Multiple gland entries: M32 and M25
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
3 phase
Suitable For
W66ES510
Rated Current (In)
0.416667
Rated Voltage (Ur)
415 V AC
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Light grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
5 Pin
Pin Type
Round
Max. Cable Size
6 mm²
With Base
B2 back box included

Dimensions & Physical Data

Depth
188 mm
Height
197 mm
Width
101 mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
