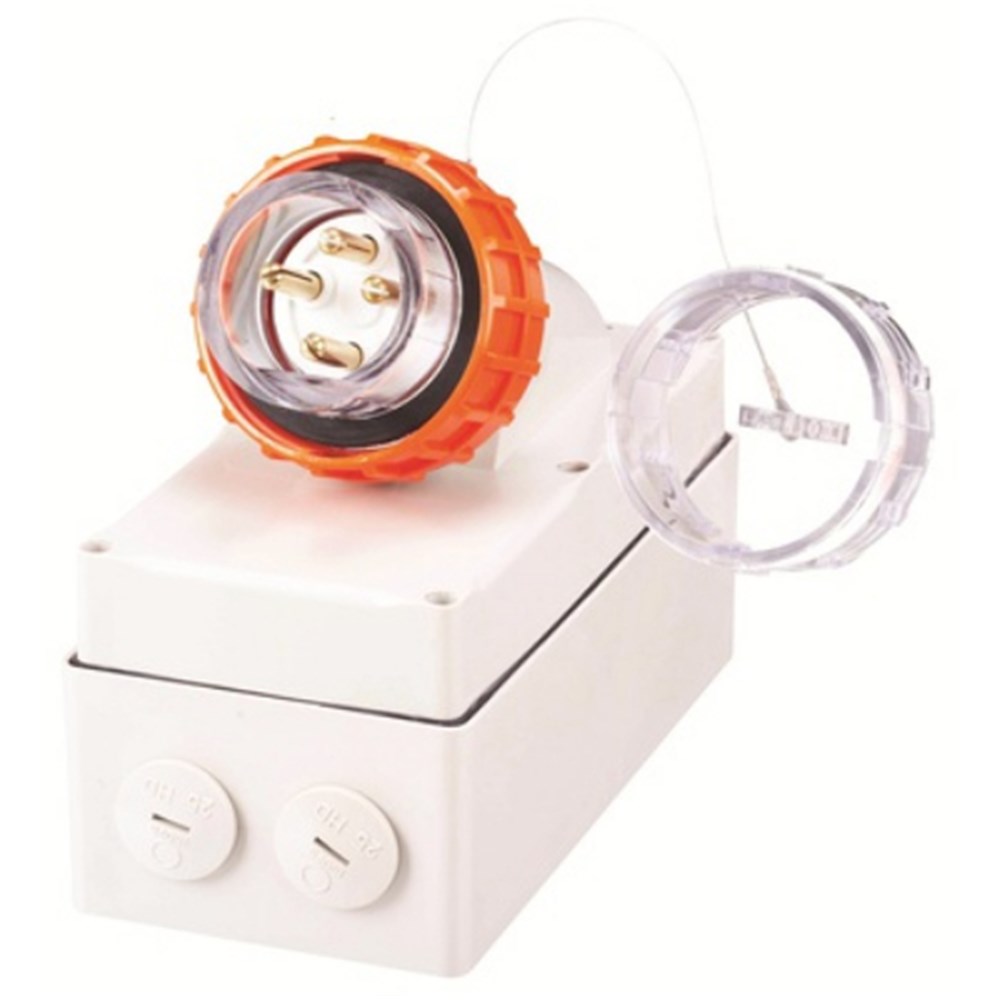

IPD W66AI432 Appliance Inlet 4 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66AI432

  • 32A rated current for robust performance
  • Operates at 500 VAC/VDC voltage
  • Durable IP66 polycarbonate construction
  • Includes (1) M32 and (2) M25 gland entries
  • Comes with back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
3 phase
Suitable For
W66ES432
Rated Current (In)
32A
Rated Voltage (Ur)
415V AC
No. of Switching Poles
3
With Neutral Conductor
No

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
16 mm²
With Base
B2 back box included

Dimensions & Physical Data

Depth
188mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
