Products

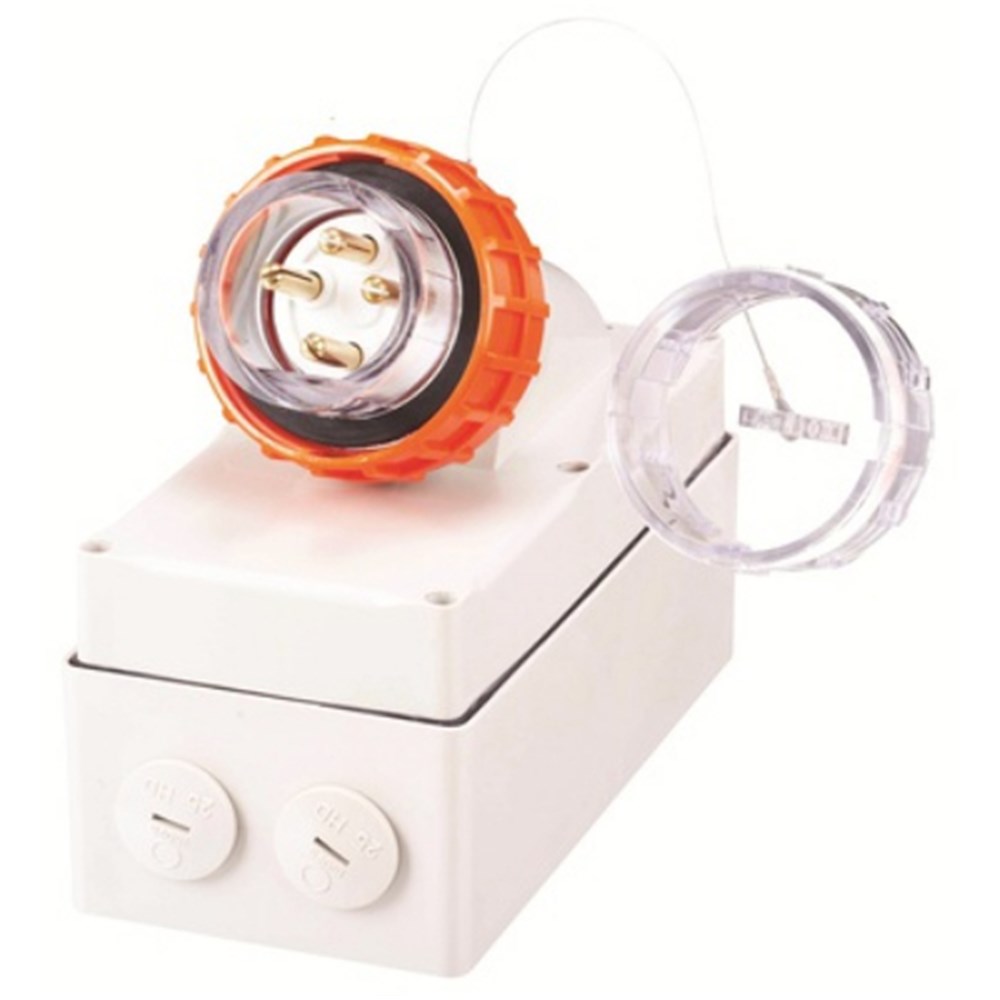

IPD W66AI420 Appliance Inlet 4 Round-Pin 3-Ph 20A 500VAC/DC IP66 Polycarbonate

Product Code: W66AI420

  • 20 A, 500 VAC/VDC rated appliance inlet
  • Robust IP66 protection for harsh conditions
  • Durable polycarbonate construction
  • Includes back box for easy installation
  • Multiple gland entries: (1) M32, (2) M25
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
3 phase
Suitable For
W66ES420
Rated Current (In)
20A
Rated Voltage (Ur)
415V AC
No. of Switching Poles
3
With Neutral Conductor
No

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
6 mm²
With Base
B2 back box included

Dimensions & Physical Data

Depth
188mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
