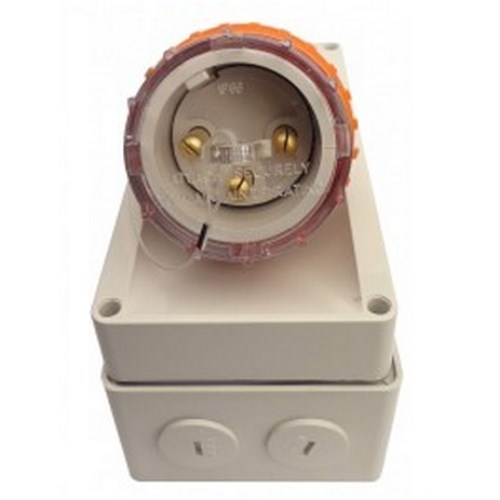

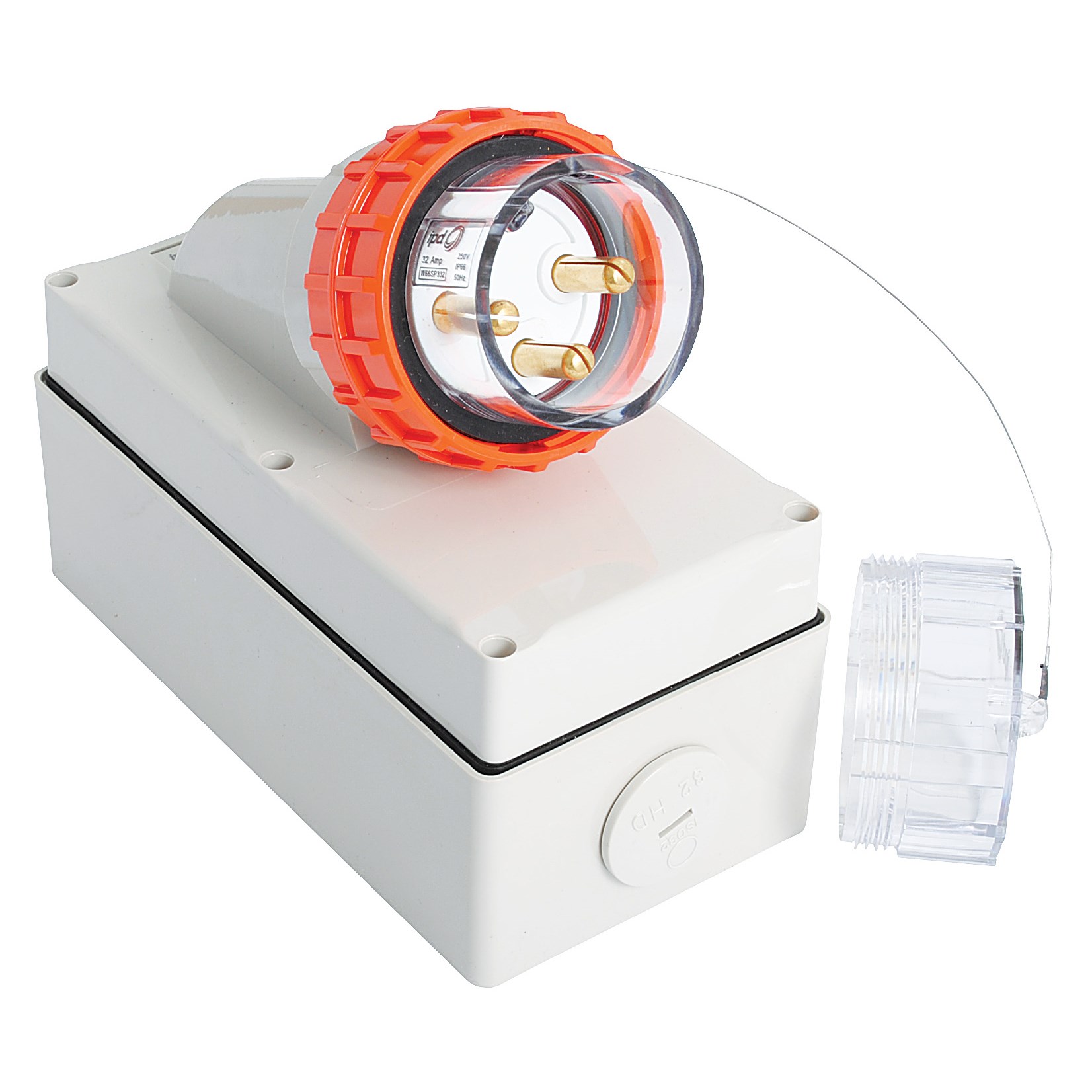

IPD W66AI332 Appliance Inlet 3 Round-Pin 1-Ph 32A 250VAC/DC IP66 Polycarbonate

Product Code: W66AI332

  • 32 A rated current for robust performance
  • Suitable for 250 VAC/VDC applications
  • IP66 protection for harsh environments
  • Durable polycarbonate construction
  • Includes back box for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD

Electrical

No. of Phases
1
Rated Current (In)
32A
Rated Voltage (Ur)
250 VAC/VDC

Mechanical

Back Box Included
Yes
Cable Cross Section
16 sq-mm
Colour
Light Grey
Cover Colour
Light Grey
Gland Entries
(1) M32, (2) M25
Material
Polycarbonate
No. of Pins
3
Pin Type
Round

Dimensions & Physical Data

Depth
188mm
Height
197mm
Width
101mm
Diameter
80mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
