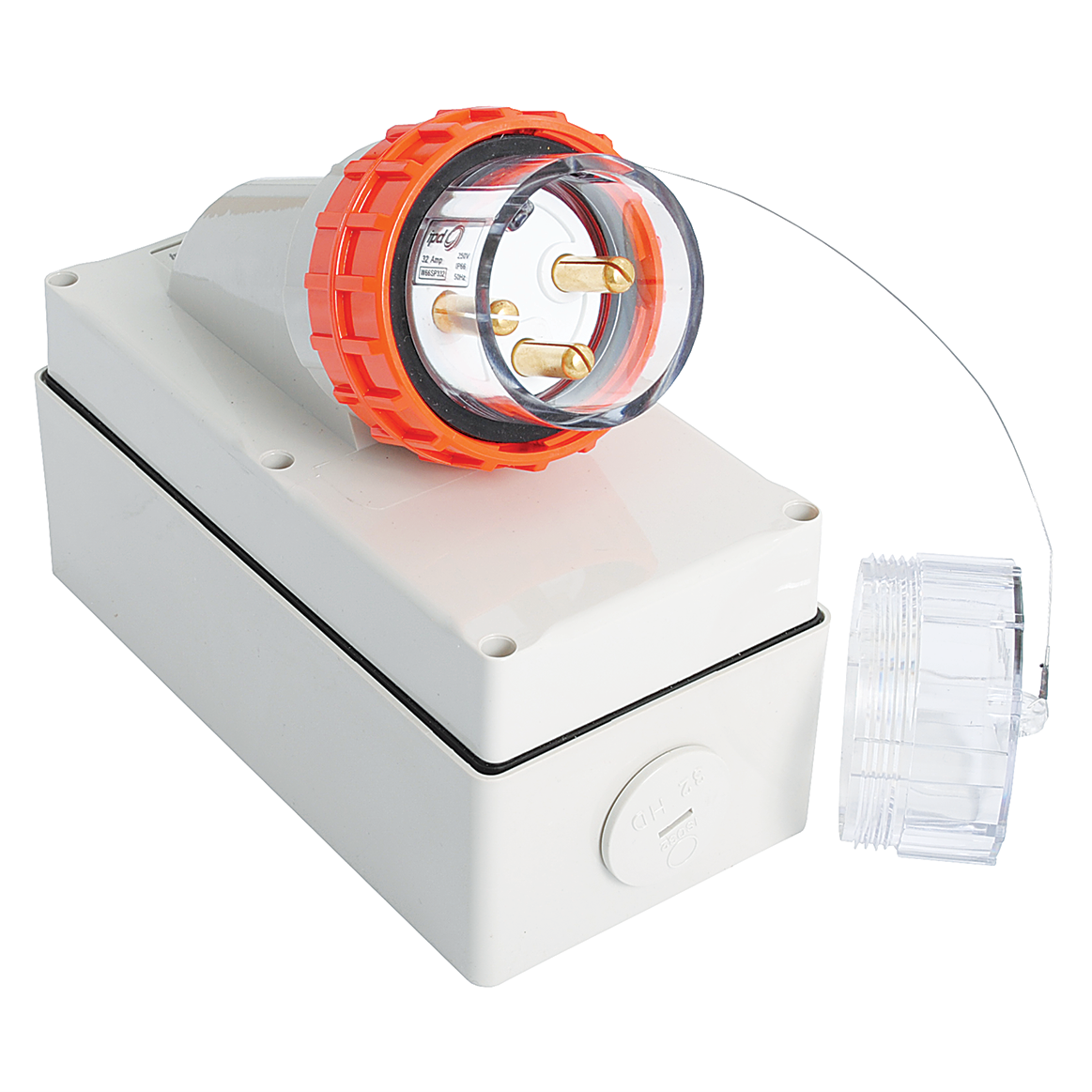

IPD W66AI320 Appliance Inlet 3 Round-Pin 1-Ph 20A 250VAC/DC IP66

Product Code: W66AI320

  • 20A current capacity
  • Operates at 250VAC/VDC
  • IP66 protection rating
  • Includes back box
  • Round pin configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
1 phase
Rated Current (In)
20A
Rated Voltage (Ur)
250V AC
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Light Grey
Gland Entries
1 x M32, 2 x M25
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Round
Max. Cable Size
6 mm²
With Base
B2 back box included

Dimensions & Physical Data

Depth
188mm
Height
197mm
Width
101mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3123

Documents

IPD Product Catalogue V17
