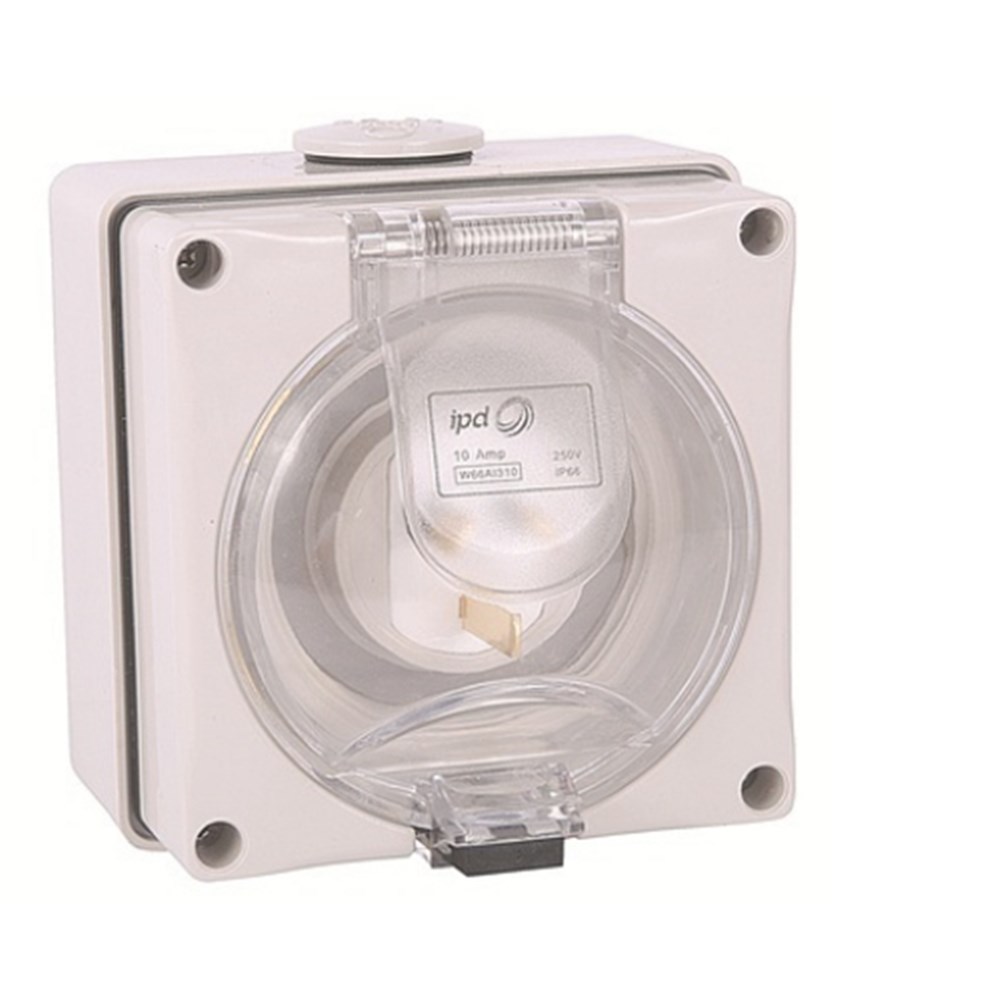

IPD W66AI310LB Appliance Inlet 3 Flat-Pin 1-Ph 10A 250VAC/DC IP66 Polycarbonate For: W66AI310

Product Code: W66AI310LB

  • 10A, 250V appliance inlet
  • Durable polycarbonate build
  • IP66 weather-resistant rating
  • Multiple gland entries: M25 & M20
  • Compact size: 101x101x80 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Appliance Inlet - Less Base
Brand
IPD
Series
W66
Application
Industrial power distribution and weatherproof electrical installations

Electrical

No. of Phases
1 phase
Rated Current (In)
0.416667
Rated Voltage (Ur)
250 VAC/VDC
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Light grey
Cover Type
Silicone gasket
Gland Entries
1 x M25, 2 x M20
Material
Polycarbonate
No. of Pins
3 Pin
Pin Type
Flat
Max. Cable Size
6 mm²
With Base
Base not included

Dimensions & Physical Data

Depth
80 mm
Height
101 mm
Width
101 mm

Environmental

IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
AS3112
Certifications / Approvals
RCM

Documents

IPD Product Catalogue V17
