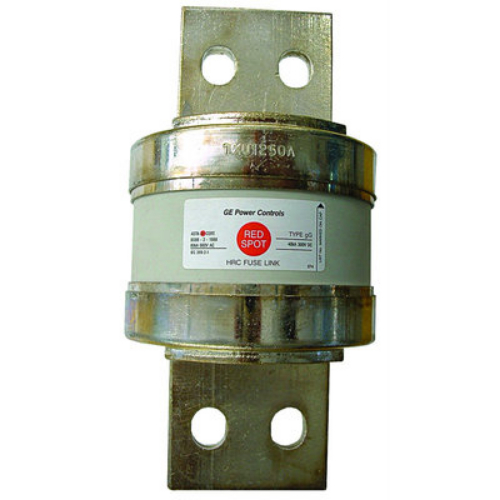

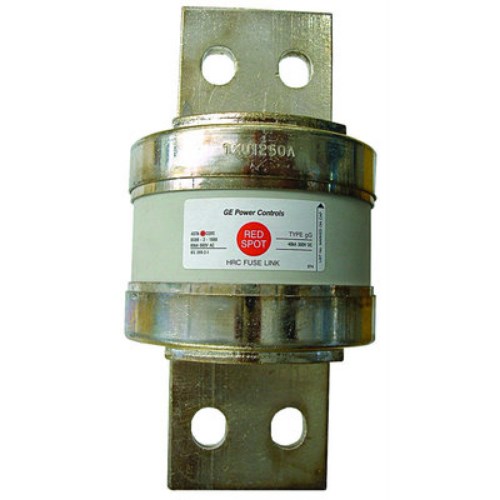

IPD TXU1250 Fuse Link 1250A 550VAC 80kA 149mm gG

Product Code: TXU1250

  • Bolt-In type for secure installation
  • Handles up to 1250A current
  • Rated for 550VAC voltage
  • High breaking capacity of 80kA
  • Fixing centres at 149mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Street lighting applications

Electrical

Utilization Category
gG
Breaking Capacity
80kA
Rated Current (In)
1250A
Rated Voltage (Ur)
550V

Mechanical

Body Style
Cylindrical
Fixing Centres
149mm
Size Code
D1

Dimensions & Physical Data

Length
198mm
Weight
2.63kg (Approx.)
Width
Ø 100mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, BS88-2

Documents

IPD Product Catalogue V17
