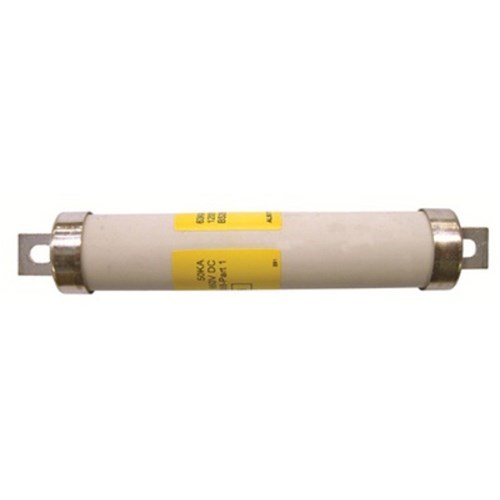

IPD TAC20 Bolt-In High Speed Traction Fuse 20A 1200VAC 22mm Dia x 139mm L 63kA 124mm gL gG

Product Code: TAC20

  • Bolt-in design for secure installation
  • Rated current of 20 A
  • High voltage rating at 1200 VAC
  • Breaking capacity up to 63 kA
  • Compact size: 22 mm Dia x 139 mm L
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Speed Traction Fuse
Brand
Eaton
Application
Traction

Electrical

Utilization Category
gL/gG
Breaking Capacity
63kA
Fuse Class
C
Rated Current (In)
20A
Rated Voltage (Ur)
1200V

Mechanical

Body Style
Offset bolted tags
Fixing Centres
124mm
Top Cap Diameter
22mm

Dimensions & Physical Data

Height
57mm
Length
134mm
Weight
0.1052kg
Width
150mm

Safety, Standards & Compliance

Standards and Approvals
BS 2692-1
