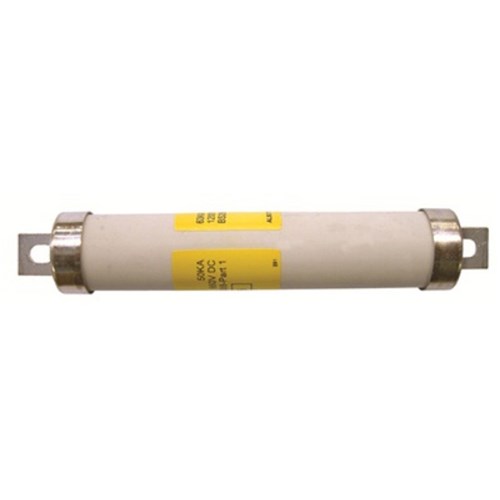

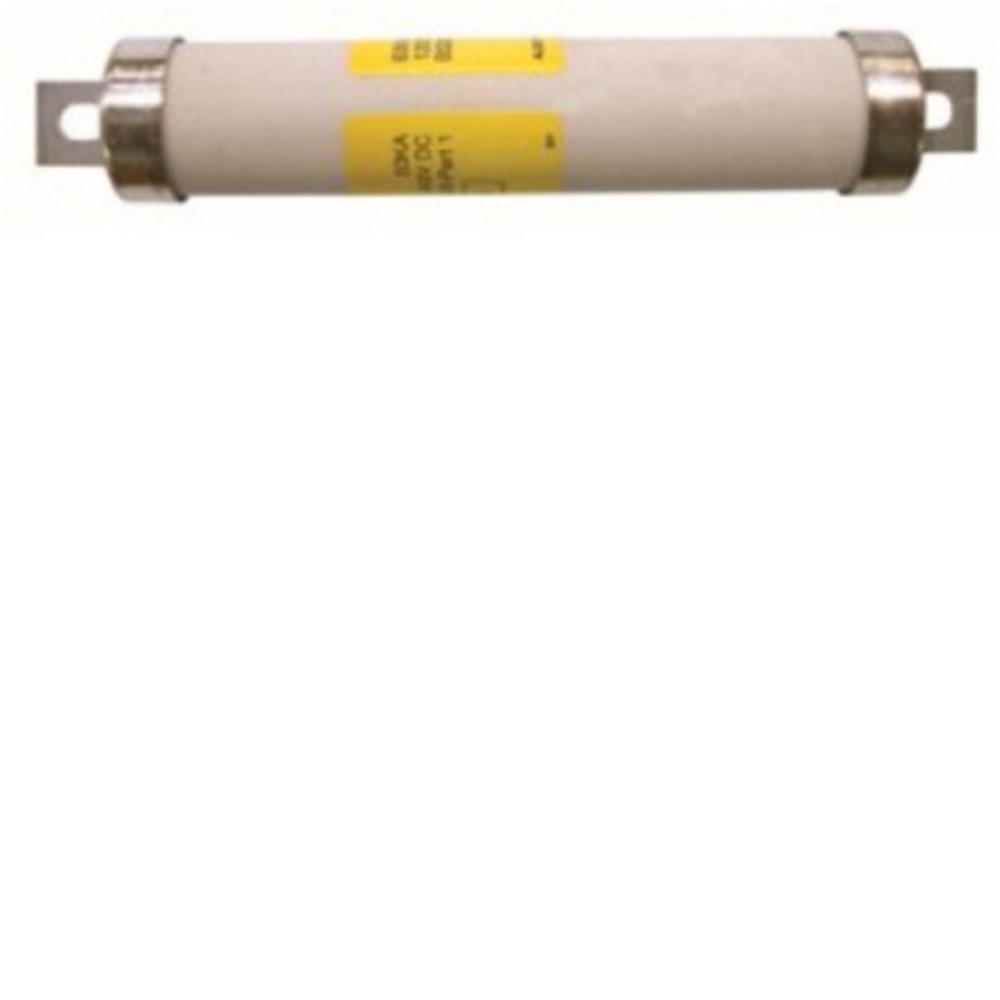

IPD TAC16 Bolt-In High Speed Traction Fuse 16A 1200VAC 22mm Dia x 139mm L 63kA 124mm gL gG

Product Code: TAC16

  • Bolt-in type with holder mounting
  • Rated for 16 A, 1200 VAC
  • High breaking capacity of 63 kA
  • Compact size: 22 mm Dia x 139 mm L
  • Complies with BS 2692-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Speed Traction Fuse
Brand
Eaton
Application
Traction

Electrical

Utilization Category
gL/gG
Breaking Capacity
63kA
Fuse Class
C
Rated Current (In)
16A
Rated Voltage (Ur)
1200V

Mechanical

Body Style
Offset bolted tags
Fixing Centres
124mm
Top Cap Diameter
22mm

Dimensions & Physical Data

Height
57mm
Length
134mm
Weight
0.105kg
Width
150mm

Safety, Standards & Compliance

Standards and Approvals
BS 2692-1
