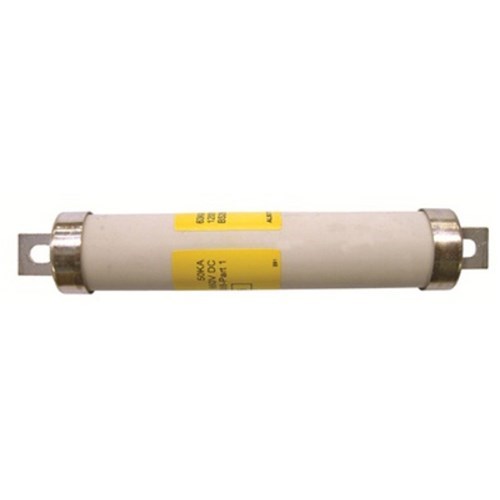

IPD TAC10 Bolt-In High Speed Traction Fuse 10A 1200VAC 22mm Dia x 139mm L 63kA 124mm gL gG

Product Code: TAC10

  • Rated for 10 A current
  • Complies with BS 2692-1 standards
  • Handles up to 1200 VAC voltage
  • High breaking capacity of 63 kA
  • Suitable for holder mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Speed Traction Fuse
Brand
Eaton
Application
Traction

Electrical

Utilization Category
Other
Breaking Capacity
63kA
Rated Voltage (Ur)
1200V

Mechanical

Body Style
Offset bolted tags
Fixing Centres
124mm
Top Cap Diameter
22mm

Dimensions & Physical Data

Height
23mm
Length
139mm
Weight
0.105kg
Width
23mm

Safety, Standards & Compliance

Standards and Approvals
BS 2692-1
